* slike so simbolične
Kotni vrt. vijačni prik., G 1/8 , zun. premer Ø 8
SKU: 158859RIE
EAN: 4047322634977

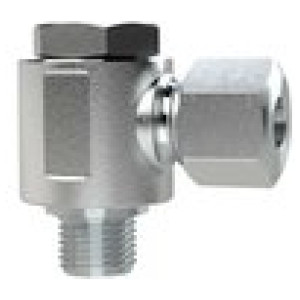

Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 8 mm, a/f1 14, a/f2 14, Operating pressure max. 100 bar, galvanised steel
Banjo elbow, parallel male thread with O-ring, very light type
Čas dobave: Predvidoma 3 - 5 dni
21,84 €
| Šifra | O.D. cev [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 158858RIE | 6 | 12 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,80 € |  | |
| 158857RIE | 5 | 12 | 25.0 | Čas dobave: Predvidoma 3 - 5 dni | 77,43 € | | |
| 158856RIE | 4 | 10 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 21,75 € | | |
| 158859RIE | 8 | 14 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,84 € | |
Opis
Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 8 mm, a/f1 14, a/f2 14, Operating pressure max. 100 bar, galvanised steel
Banjo elbow, parallel male thread with O-ring, very light type

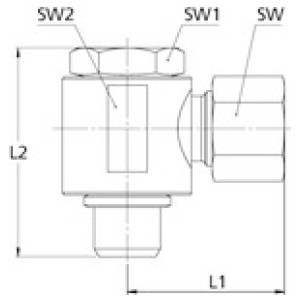

Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | G 1/8 |
| O.D. cev [mm] | 8 |
| L1 [mm] | 26.0 |
| L2 [mm] | 28.0 |
| a/f [mm] | 14 |
| a/f 1 [mm] | 14 |
| a/f 2 [mm] | 18 |
| PN [bar] | 100 |
