* slike so simbolične

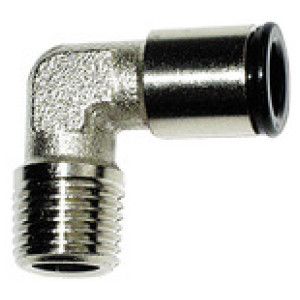

Kotni priključek »value line«, R 1/4 o., za za cev zunanji Ø 6 mm
SKU: 116194RIE
EAN: 4047322183642
Angled screw-in fitting »value line«, R 1/4 o., for hose exterior Ø 6 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
| Šifra | Navoj | Rokav | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 116195RIE | R 1/4 | Hostaform | 8 | 12 | 22.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,14 € |  | |
| 116197RIE | R 1/8 | Hostaform | 6 | 10 | 17.5 | 20.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,67 € | | |
| 116194RIE | R 1/4 | Hostaform | 6 | 12 | 22.0 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,14 € | | |
| 116196RIE | R 1/8 | Hostaform | 4 | 10 | 17.5 | 16.1 | Čas dobave: Predvidoma 3 - 5 dni | 2,31 € | | |
| 116198RIE | R 1/8 | Hostaform | 8 | 10 | 18.5 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,93 € | | |
| 116193RIE | R 1/4 | Black nickel-plated | 10 | 14 | 22.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,81 € | |
Opis
Angled screw-in fitting »value line«, R 1/4 o., for hose exterior Ø 6 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
| Serija | value line |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Tesnilo | NBR, silicone-free |
| Priporočena cev | PA, PU |
| Vpenjalo | Stainless steel AISI 316 |
| Rokav | Hostaform |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 23.0 |
| L2 [mm] | 22.0 |
| a/f [mm] | 12 |
| Material | Nickel-plated brass |
