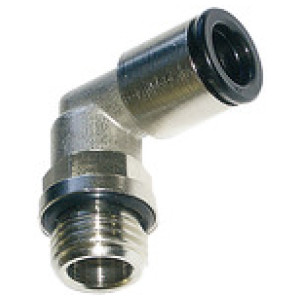

Kotni prik. value line, vrt., G 3/8 , za zun. Ø 10 mm
SKU: 116210RIE
EAN: 4047322183789
Angled screw-in fitting »value line«, rotating, G 3/8 o., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.

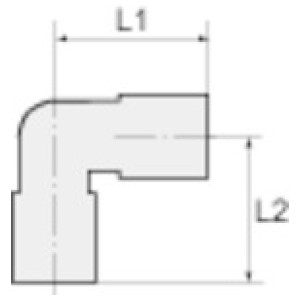

Šifra | Navoj | Rokav | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
116200RIE | M5 | Hostaform | 6 | 9 | 14.5 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,29 € | | |
116199RIE | M5 | Hostaform | 4 | 9 | 14.5 | 19.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,12 € | | |
116207RIE | G 1/8 | Hostaform | 4 | 13 | 20.0 | 19.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,12 € | | |
116203RIE | G 1/4 | Black nickel-plated | 10 | 16 | 24.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,42 € | | |
116202RIE | G 1/2 | Black nickel-plated | 12 | 20 | 33.5 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,58 € | | |
116209RIE | G 1/8 | Hostaform | 8 | 13 | 20.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,18 € | | |
116205RIE | G 1/4 | Hostaform | 6 | 13 | 24.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,59 € | | |
116212RIE | G 3/8 | Hostaform | 8 | 13 | 25.5 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,42 € | | |
116211RIE | G 3/8 | Black nickel-plated | 12 | 20 | 28.5 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,21 € | | |
116210RIE | G 3/8 | Black nickel-plated | 10 | 16 | 28.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,87 € | | |
116201RIE | G 1/2 | Black nickel-plated | 10 | 16 | 30.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,12 € | | |
116204RIE | G 1/4 | Hostaform | 4 | 13 | 24.0 | 19.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,54 € | | |
116208RIE | G 1/8 | Hostaform | 6 | 13 | 20.0 | 21.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,18 € | | |
116206RIE | G 1/4 | Hostaform | 8 | 13 | 24.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,59 € | |
Opis
Angled screw-in fitting »value line«, rotating, G 3/8 o., for hose exterior Ø 10 mm, Working pressure -0.98 to 16 bar
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
Serija | value line |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 80 |
Tesnilo | NBR, silicone-free |
Priporočena cev | PA, PU |
Vpenjalo | Stainless steel AISI 316 |
Rokav | Black nickel-plated |
Navoj | G 3/8 |
Za cevi O.D. [mm] | 10 |
L1 [mm] | 27.0 |
L2 [mm] | 28.0 |
a/f [mm] | 16 |
Material | Nickel-plated brass |
