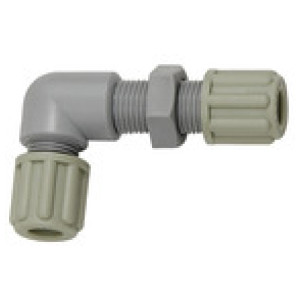

Kot. pregrad. navoj. prik., M16x1.5, za 8/10 mm, AF 22, PA
SKU: 110846RIE
EAN: 4047322027724
Angled bulkhead connector, M16x1.5, for hose 8/10 mm, AF 22, Working pressure max. 10 bar (20 °C)/max. 1 bar (60 °C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Čas dobave: Predvidoma 3 - 5 dni
7,65 €
| Šifra | Navoj | Za cevi [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 110846RIE | M16x1.5 | 8/10 | 22 | 36.0 | 58.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,65 € |  | |
| 110845RIE | M14x1.5 | 6/8 | 19 | 33.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,72 € | | |
| 110847RIE | M18x1.5 | 9/12 | 24 | 43.0 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,37 € | | |
| 110844RIE | M10x1.0 | 4/6 | 14 | 25.0 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,88 € | |
Opis
Angled bulkhead connector, M16x1.5, for hose 8/10 mm, AF 22, Working pressure max. 10 bar (20 °C)/max. 1 bar (60 °C), PA
Manufactured from high impact-resistant, UV-stabilised engineering plastic, extremely resistant to weathering.
Good chemical resistance to benzine, diesel oil, fuel oil and alkalis. Not suitable for use with acids.
Tehnični podatki in specifikacije
| Max. delovni tlak pri 20 ° C [bar] | 10 |
| Max. delovni tlak pri 60 ° C [bar] | 1 |
| Navoj | M16x1.5 |
| Za cevi [mm] | 8/10 |
| L1 [mm] | 58.0 |
| a/f [mm] | 22 |
| L2 [mm] | 36.0 |
| Telo vijačnega priključka | Polyamide (PA) |
| Vpenjalni obroč | Polypropylene (PP) |
| Narezana matica | Polypropylene (PP) |
