* slike so simbolične

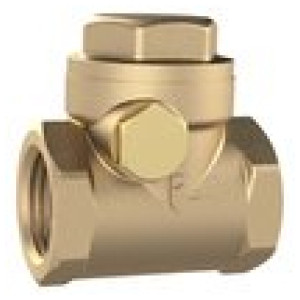

Kontrolni ventil, DN 20, medenina, G 3/4, PN max. 16 bar
SKU: 158065RIE
EAN: 4047322631495
Check valve, DN 20, Brass, Metallic sealing, Operating temperature 0 °C to 90 °C, G 3/4, PN max. 16 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Čas dobave: Predvidoma 3 - 5 dni
20,02 €

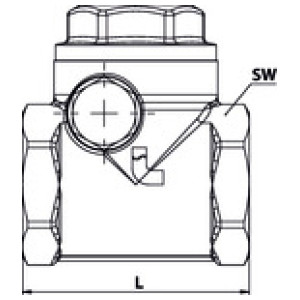

| Šifra | Navoj | Max. obratovalni tlak [bar] | DN | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 158067RIE | G 1 1/4 | 10 | 32 | 50 | 72.0 | Čas dobave: Predvidoma 3 - 5 dni | 44,30 € |  | |
| 158066RIE | G 1 | 12 | 25 | 42 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 29,77 € | | |
| 158064RIE | G 1/2 | 16 | 15 | 27 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,55 € | | |
| 158068RIE | G 1 1/2 | 10 | 40 | 57 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 57,74 € | | |
| 158070RIE | G 2 1/2 | 8 | 65 | 85 | 119.0 | Čas dobave: Predvidoma 3 - 5 dni | 165,57 € | | |
| 158065RIE | G 3/4 | 16 | 20 | 34 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,02 € | | |
| 158063RIE | G 3/8 | 16 | 10 | 27 | 43.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,80 € | | |
| 158072RIE | G 4 | 8 | 100 | 126 | 169.0 | Čas dobave: Predvidoma 3 - 5 dni | 412,07 € | | |
| 158069RIE | G 2 | 10 | 50 | 69 | 94.0 | Čas dobave: Predvidoma 3 - 5 dni | 81,00 € | | |
| 158071RIE | G 3 | 8 | 80 | 98.5 | 134.0 | Čas dobave: Predvidoma 3 - 5 dni | 228,30 € | |
Opis
Check valve, DN 20, Brass, Metallic sealing, Operating temperature 0 °C to 90 °C, G 3/4, PN max. 16 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Tehnični podatki in specifikacije
| Ventilski disk | Brass |
| Max. obratovalni tlak [bar] | 16 |
| Ohišje | Brass |
| Max. delovna temperatura [°C] | 90 |
| Dolžina [mm] | 52.0 |
| DN | 20 |
| Standardni navoj | G-thread acc. to DIN EN ISO 228-1 |
| Navoj | G 3/4 |
| a/f [mm] | 34 |
