* slike so simbolične

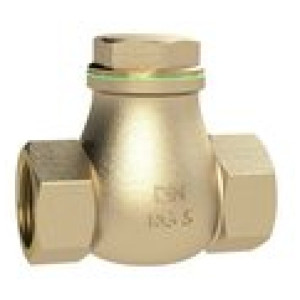

Kontrolni ventil, DN 15, rdeč medenina, G 1/2, PN max. 16 bar
SKU: 158073RIE
EAN: 4047322631570
Check valve, DN 15, Red brass, Metallic sealing, Operating temperature -10 °C to 80 °C, G 1/2, PN max. 16 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Obrestno financiranje
- 11,98 € x 12 mesecev
- 23,43 € x 6 mesecev
- 46,34 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

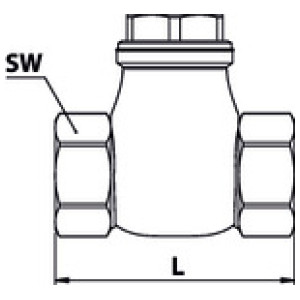

| Šifra | Navoj | DN | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 158074RIE | G 3/4 | 20 | 34 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 158,73 € |  | |
| 158077RIE | G 1 1/2 | 40 | 55 | 105.0 | Čas dobave: Predvidoma 3 - 5 dni | 318,21 € | | |
| 158076RIE | G 1 1/4 | 32 | 51 | 95.0 | Čas dobave: Predvidoma 3 - 5 dni | 248,73 € | | |
| 158078RIE | G 2 | 50 | 70 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 442,79 € | | |
| 158075RIE | G 1 | 25 | 41 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | 188,95 € | | |
| 158079RIE | G 2 1/2 | 65 | 90 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.958,04 € | | |
| 158073RIE | G 1/2 | 15 | 27 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 127,88 € | |
Opis
Check valve, DN 15, Red brass, Metallic sealing, Operating temperature -10 °C to 80 °C, G 1/2, PN max. 16 bar
Applications: Water (no steam), neutral and non-corrosive liquid media, mineral oils.
Only suitable for liquid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
Tehnični podatki in specifikacije
| Ventilski disk | Brass |
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -10 |
| Ohišje | Red brass |
| Max. delovna temperatura [°C] | 80 |
| Dolžina [mm] | 60.0 |
| DN | 15 |
| Standardni navoj | G-thread acc. to DIN EN ISO 228-1 |
| Navoj | G 1/2 |
| a/f [mm] | 27 |
