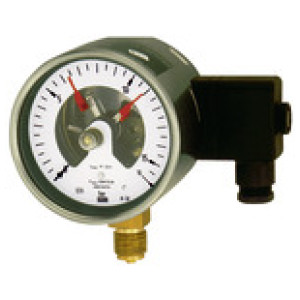

Kontaktni manometer, priklop spodaj, G 1/2, 0 - 250 bar, Ø 100
SKU: 102605RIE
EAN: 14028118
Contact pressure gauge, magnetic spring contact, Connection radial bottom, G 1/2, Goods class 1.0, Measuring range 0-250 bar, Ø100
Robust bourdon-tube pressure gauge with electrical contact (magnetic spring contact), contact type 821.21.
The electrical contact opens an electrical circuit when the first set limit value is reached and closes it again at the second limit value.
Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Current ratings:
Make rating 1.0 A
Break rating 1.0 A
Continuous load 0.6 A
Pin assignment 821.21:
1. Contact makes when pointer reaches set point
2. Contact breaks when pointer reaches set point
Obrestno financiranje
- 14,30 € x 48 mesecev
- 18,27 € x 36 mesecev
- 26,25 € x 24 mesecev
- 50,25 € x 12 mesecev
- 98,30 € x 6 mesecev
- 194,41 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Merilni element | Merilno območje min. bar | Spodnja/Zgornja meja območja | Stopnja rasti na območju skale - bar [bar] | Razred točnosti | Merilno območje max. bar | Premer [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 102597RIE | Copper alloy | 0 | Positive pressure | 0.1 | 1.0 | 6 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 508,75 € |  | |
| 102613RIE | Copper alloy | 0 | Positive pressure | 1 | 1.0 | 40 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 604,58 € | | |
| 102604RIE | CrNi steel 1.4571 | 0 | Positive pressure | 5 | 1.0 | 160 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 537,46 € | | |
| 102614RIE | CrNi steel 1.4571 | 0 | Positive pressure | 10 | 1.0 | 600 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 670,90 € | | |
| 102608RIE | Copper alloy | -1 | Vacuum/Positive pressure | 0.05 | 1.0 | 1.5 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 613,18 € | | |
| 102596RIE | Copper alloy | 0 | Positive pressure | 0.1 | 1.0 | 4 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 508,75 € | | |
| 102600RIE | Copper alloy | 0 | Positive pressure | 0.5 | 1.0 | 25 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 508,75 € | | |
| 102603RIE | CrNi steel 1.4571 | 0 | Positive pressure | 2 | 1.0 | 100 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 537,46 € | | |
| 102601RIE | Copper alloy | 0 | Positive pressure | 1 | 1.0 | 40 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 508,75 € | | |
| 102606RIE | CrNi steel 1.4571 | 0 | Positive pressure | 10 | 1.0 | 400 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 537,46 € | | |
| 102612RIE | Copper alloy | 0 | Positive pressure | 0.5 | 1.0 | 16 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 604,58 € | | |
| 102609RIE | Copper alloy | 0 | Positive pressure | 0.02 | 2.5 | 1 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 613,18 € | | |
| 102607RIE | Copper alloy | -1 | Vacuum | 0.02 | 2.5 | 0 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 613,18 € | | |
| 102599RIE | Copper alloy | 0 | Positive pressure | 0.5 | 1.0 | 16 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 508,75 € | | |
| 102610RIE | Copper alloy | 0 | Positive pressure | 0.1 | 1.0 | 6 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 604,58 € | | |
| 102605RIE | CrNi steel 1.4571 | 0 | Positive pressure | 5 | 1.0 | 250 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 537,46 € | | |
| 102602RIE | Copper alloy | 0 | Positive pressure | 1 | 1.0 | 60 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 537,46 € | | |
| 102598RIE | Copper alloy | 0 | Positive pressure | 0.2 | 1.0 | 10 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 508,75 € | | |
| 102595RIE | Copper alloy | 0 | Positive pressure | 0.05 | 1.0 | 2.5 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 508,75 € | | |
| 102611RIE | Copper alloy | 0 | Positive pressure | 0.2 | 1.0 | 10 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 604,58 € | |
Opis
Contact pressure gauge, magnetic spring contact, Connection radial bottom, G 1/2, Goods class 1.0, Measuring range 0-250 bar, Ø100
Robust bourdon-tube pressure gauge with electrical contact (magnetic spring contact), contact type 821.21.
The electrical contact opens an electrical circuit when the first set limit value is reached and closes it again at the second limit value.
Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Current ratings:
Make rating 1.0 A
Break rating 1.0 A
Continuous load 0.6 A
Pin assignment 821.21:
1. Contact makes when pointer reaches set point
2. Contact breaks when pointer reaches set point
Tehnični podatki in specifikacije
| Povezava | G 1/2 |
| Položaj povezave | radial on bottom |
| Premer [mm] | 100 |
| Vrsta | PGS21 |
| Razred točnosti | 1.0 |
| Ohišje | CrNi steel 1.4301 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 80 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 60 |
| Premikanje | Copper alloy |
| Prednje steklo | Polycarbonate |
| Okvir | CrNi steel 1.4301 |
| Merilni element | CrNi steel 1.4571 |
| Nazivna obratovalna napetost (MSR) Ueff max. [V] | 250 |
| Max. preklopna zmogljivost | 30 W / 50 VA |
| Merilno območje max. bar | 250 |
| Stopnja rasti na območju skale - bar [bar] | 5 |
| Spodnja/Zgornja meja območja | Positive pressure |
| Material Prozessanschluss | Copper alloy |
