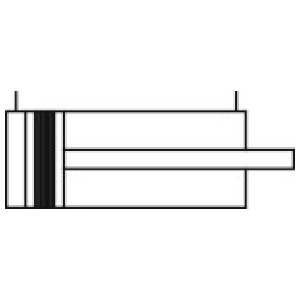

Komp. cilind.del. v dveh smereh,bat Ø100,hod80,G1/8,ISO21287 slika

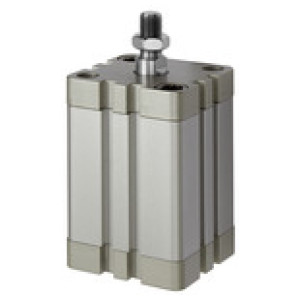

Komp. cilind.del. v dveh smereh,bat Ø100,hod80,G1/8,ISO21287 slika

* slike so simbolične

Komp. cilind.del. v dveh smereh,bat Ø100,hod80,G1/8,ISO21287

SKU: 155770RIE
EAN: 4047322621489

Compact cyl.ISO 21287, double-acting, male piston rod magnet, PistonØ100, Stroke80, G1/8, Work.press.max.10bar, Temp.-20°C to 70°C

Series acc. to ISO 21287 characterised by a very short and compact design.

The standard type features a magnetic piston.

Piston rod optionally with male or female thread.

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

Čas dobave: Predvidoma 3 - 5 dni
174,42 €
ali od 16,28 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 16,28 € x 12 mesecev
  • 31,85 € x 6 mesecev
  • 62,99 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

Opis

Compact cyl.ISO 21287, double-acting, male piston rod magnet, PistonØ100, Stroke80, G1/8, Work.press.max.10bar, Temp.-20°C to 70°C

Series acc. to ISO 21287 characterised by a very short and compact design.

The standard type features a magnetic piston.

Piston rod optionally with male or female thread.

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

Tehnični podatki in specifikacije

Magnet with magnet
Ffunkcija double-acting
Serija ACE series
Standard acc. to ISO 21287
Gewinde Kolbenstange male piston rod
Max. delovni tlak [bar] 10
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 70
Tesnilo NBR
Ovoj Anodised aluminium jacket with T-slots
Bat Ø [mm] 100
Stroke [mm] 80
Povezava G 1/8
Batnica S45C steel, hard chrome-plated
ET batnice M16x1.5
Bat Aluminium
