Koleno za vijake 95, N.N./N.N.Rp 1 1/4,č. kovanlit. ž.
SKU: 112919RIE
EAN: 4047322396189

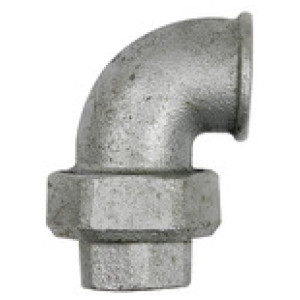

Fitting elbow 95, flat sealing, IT/IT, Rp 1 1/4, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galvanised
"Maximum temperature and maximum operating pressure should not occur at the same time!
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 112916RIE | Rp 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 10,28 € |  | |
| 112917RIE | Rp 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 11,66 € | | |
| 112918RIE | Rp 1 | Čas dobave: Predvidoma 3 - 5 dni | 14,53 € | | |
| 112921RIE | Rp 2 | Čas dobave: Predvidoma 3 - 5 dni | 52,79 € | | |
| 112920RIE | Rp 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 36,12 € | | |
| 112919RIE | Rp 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 25,00 € | |
Opis
Fitting elbow 95, flat sealing, IT/IT, Rp 1 1/4, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galvanised
"Maximum temperature and maximum operating pressure should not occur at the same time!
Acc. to DIN EN 10242 (formerly DIN 2950)
The classic - and the most popular - screw fitting series for pipe construction.
These fittings are characterized by their high mechanical strength and surface quality to DIN 2444.
They are completely coated with a layer of pure zinc and are therefore suitable for drinking water
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 200 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Hot dip galvanised |
| Navoj | Rp 1 1/4 |
| Standardni navoj | acc. ISO 7-1 |
