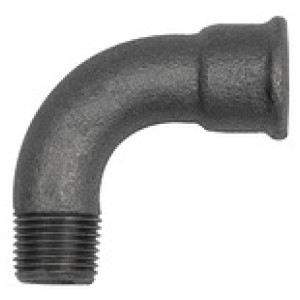

Koleno 1, 90° dolg Rp 11/2 i.R 11/2 a.Kovinski železo črn
SKU: 133577RIE
EAN: 4047322479165
Elbow 1, 90°, long, Rp 1 1/2 IT, R 1 1/2 ET, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 133575RIE | Rp/R 3/4 | Čas dobave: Predvidoma 3 - 5 dni | 6,53 € |  | |
| 133577RIE | Rp/R 1 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 20,18 € | | |
| 133572RIE | Rp/R 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 3,56 € | | |
| 133576RIE | Rp/R 1 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 15,15 € | | |
| 133573RIE | Rp/R 3/8 | Čas dobave: Predvidoma 3 - 5 dni | 4,47 € | | |
| 133574RIE | Rp/R 1/2 | Čas dobave: Predvidoma 3 - 5 dni | 3,88 € | | |
| 133578RIE | Rp/R 2 | Čas dobave: Predvidoma 3 - 5 dni | 32,66 € | |
Opis
Elbow 1, 90°, long, Rp 1 1/2 IT, R 1 1/2 ET, black malleable iron fitting, operating temp. -20 °C to 300 °C, ISO 7-1
According to DIN EN 10242 (previously 2950).
Malleable iron cast fittings in black steel, non-galvanized, is the classic fitting series in connection series in piping construction. Our malleable iron cast fittings are characterized by high mechanical strength and standardized fitting technology.
Working minimal temperature = -20 °C, 25 bar.
Working pressure for temperature range from -20 °C to 120 °C: 25 bar.
Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 300 |
| Material | Black malleable iron B350-10, design symbol A |
| Površina | Black |
| Navoj | Rp/R 1 1/2 |
| Standardni navoj | acc. ISO 7-1 |
