Kamlok tesnilni pokrov plugDP tipAluminijVel. 1 1/4Plug Ø 45
SKU: 108084RIE
EAN: 4047322403726

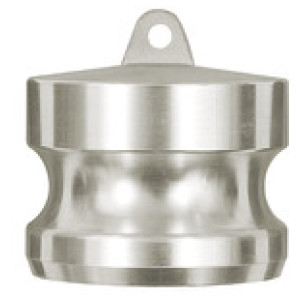

Kamlok cap plug, DP type, Aluminium, Size 1 1/4, Plug Ø 45 mm, Operating pressure max. 16 bar, Temp. max. 68 °C
Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.

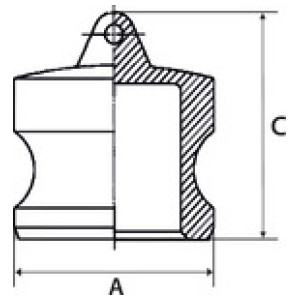

| Šifra | Velikost | A [mm] | Vtič Ø [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108086RIE | 2 | 63.0 | 63 | 63.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,11 € |  | |
| 108083RIE | 1 | 36.6 | 37 | 52.3 | Čas dobave: Predvidoma 3 - 5 dni | 4,07 € | | |
| 108085RIE | 1 1/2 | 53.4 | 53 | 57.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,32 € | | |
| 108088RIE | 3 | 91.4 | 92 | 67.5 | Čas dobave: Predvidoma 3 - 5 dni | 12,37 € | | |
| 108084RIE | 1 1/4 | 45.4 | 45 | 57.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,79 € | | |
| 108082RIE | 3/4 | 32.1 | 32 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,82 € | | |
| 108089RIE | 4 | 119.5 | 120 | 69.8 | Čas dobave: Predvidoma 3 - 5 dni | 18,37 € | | |
| 108087RIE | 2 1/2 | 57.7 | 76 | 67.5 | Čas dobave: Predvidoma 3 - 5 dni | 10,25 € | |
Opis
Kamlok cap plug, DP type, Aluminium, Size 1 1/4, Plug Ø 45 mm, Operating pressure max. 16 bar, Temp. max. 68 °C
Coupling system for quick and easy connection of two hoses or for joining one hose to a machine connection.
A male part and a female part are joined together by shifting the handles.
There is no need to turn the hose!
Kamlok couplings are used for a wide range of applications in industrial plant and mechanical engineering, tank and container construction, the chemical industry, food processing, mining, refuelling systems, defence technology, etc.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 16 |
| Velikost | 1 1/4 |
| Vtič Ø [mm] | 45 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 68 |
| Tesnilo | NBR, resistant to oils and benzine |
| A [mm] | 45.4 |
| C [mm] | 57.5 |
