* slike so simbolične

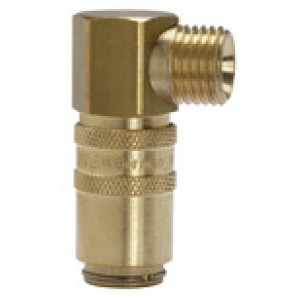

Kaljena spojka DN6, zunanji navoj, Medenina, G 1/4 90°
SKU: 107928RIE
EAN: 4047322258142
Tempered coupling DN 6, Exterior thread, Brass 2.0401, G 1/4 90°, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
| Šifra | Priključni navoj | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 107923RIE | M14x1.5 straight | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,54 € |  | |
| 107925RIE | M14x1.5 45° | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,62 € | | |
| 107926RIE | G 1/4 45° | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,62 € | | |
| 107927RIE | M14x1.5 90° | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,62 € | | |
| 107924RIE | G 1/4 straight | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,54 € | | |
| 107928RIE | G 1/4 90° | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 24,62 € | |
Opis
Tempered coupling DN 6, Exterior thread, Brass 2.0401, G 1/4 90°, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Priključni navoj | G 1/4 90° |
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 47.0 |
| a/f [mm] | 17 |
