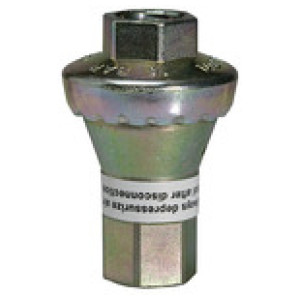

In-line Tlačni reg.2 x IT, G 1/4, AF 17, prednast. na 1 bar
SKU: 101494RIE
EAN: 4047322203807
Inline pressure regulator, 2 x IT, without secondary venting, G 1/4, AF 17, Working pressure (pre-set) 1 bar, PN max. 18 bar
This single-acting diaphragm regulator can be installed in any pneumatic system. Since the pressure is preset in the factory and cannot be altered, the product is also tamper-proof.
We recommend mounting the regulator directly on the tool to make sure the correct pressure is applied. In this case, the tool is never stressed by the higher pressure of the supply system and is protected against pressure fluctuations in hoses, pipes, etc.
Energy efficiency and economic efficiency can be achieved by using an inline pressure regulator.
| Šifra | Delovni tlak (prednastavitev) [bar] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 101494RIE | 1 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € |  | |
| 101497RIE | 4 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € | | |
| 101498RIE | 5 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € | | |
| 101500RIE | 6.5 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € | | |
| 101496RIE | 3 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € | | |
| 101501RIE | 7 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € | | |
| 101499RIE | 6 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € | | |
| 101495RIE | 2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 35,55 € | |
Opis
Inline pressure regulator, 2 x IT, without secondary venting, G 1/4, AF 17, Working pressure (pre-set) 1 bar, PN max. 18 bar
This single-acting diaphragm regulator can be installed in any pneumatic system. Since the pressure is preset in the factory and cannot be altered, the product is also tamper-proof.
We recommend mounting the regulator directly on the tool to make sure the correct pressure is applied. In this case, the tool is never stressed by the higher pressure of the supply system and is protected against pressure fluctuations in hoses, pipes, etc.
Energy efficiency and economic efficiency can be achieved by using an inline pressure regulator.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. obratovalni tlak [bar] | 18 |
| Max. temperaturno območje [°C] | 60 |
| Ohišje | Zinc |
| Pretok [l/min] | 400 |
| Delovni tlak (prednastavitev) [bar] | 1 |
| Notranji deli | G 1/4 |

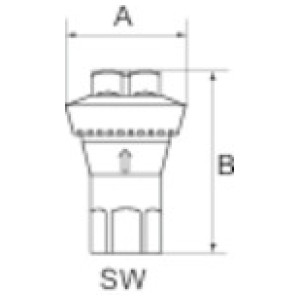

| A [mm] | 34.0 |
| B [mm] | 52.0 |
| Serija | inline |
| Merjenje pretoka |
At P |
| a/f [mm] | 17 |
