* slike so simbolične

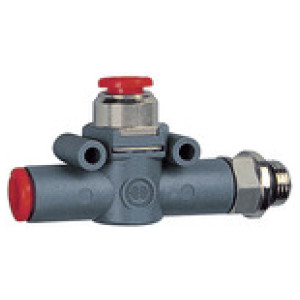

Hitro oddušni ventil, kont. izpust, G3/8 (izhodni), 8 (vhodni)
SKU: 106775RIE
EAN: 9063212
Quick relief valve »lineonline«, Controlled venting, Hose - thread, G 3/8, for hose Ø 8 mm, Operating pressure 1-10 bar
Exhaust can be silenced by a stainless steel silencer or conveyed using a push-in fitting with an air exhaust device.
Čas dobave: Predvidoma 3 - 5 dni
19,85 €
| Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bara [Nl/min] | Izhodni pretok pri 6,3 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 106772RIE | G 1/8 | 8 | 18.7 | 35.9 | 66.2 | 400 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 17,29 € |  | |
| 106769RIE | M5 | 4 | 12.8 | 25.8 | 47.7 | 50 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 16,80 € | | |
| 106770RIE | G 1/8 | 4 | 12.8 | 25.8 | 50.6 | 50 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 16,80 € | | |
| 106771RIE | G 1/8 | 6 | 14.6 | 30.2 | 58.5 | 270 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 17,14 € | | |
| 106774RIE | G 1/4 | 8 | 18.7 | 35.9 | 70.6 | 400 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 18,40 € | | |
| 106773RIE | G 1/4 | 6 | 14.6 | 30.2 | 61.5 | 270 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 17,29 € | | |
| 106775RIE | G 3/8 | 8 | 18.7 | 35.9 | 72.2 | 400 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | 19,85 € | |
Opis
Quick relief valve »lineonline«, Controlled venting, Hose - thread, G 3/8, for hose Ø 8 mm, Operating pressure 1-10 bar
Exhaust can be silenced by a stainless steel silencer or conveyed using a push-in fitting with an air exhaust device.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Min. obratovalni tlak [bar] | 1 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |

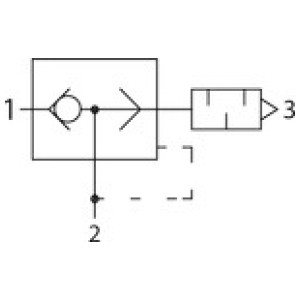

| Pnevmatski simboli | On housing |
| Navoj | G 3/8 |
| Za cevi Ø [mm] | 8 |

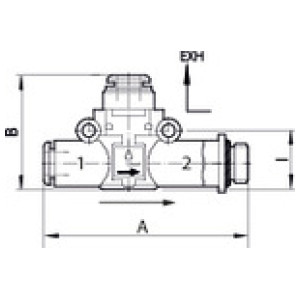

| A [mm] | 72.2 |
| B [mm] | 35.9 |
| I [mm] | 18.7 |
| Pretok pri 6,3 bara [Nl/min] | 400 |
| Izhodni pretok pri 6,3 bar [Nl/min] | 1000 |
