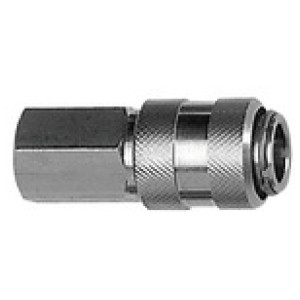

Hitre spojke I.D. 7.8,Nerjavno jeklo 1.4305, G 1/2 notranji navoj
SKU: 107422RIE
EAN: 4047322060370
Quick-connect coupling I.D. 7.8, Stainless steel 1.4305, G 1/2 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C
"One-hand quick disconnect couplings, one side sealing, made of stainless steel 1.4305.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, food technology, aerospace, mining, offshore.
"
Obrestno financiranje
- 12,71 € x 24 mesecev
- 24,33 € x 12 mesecev
- 47,59 € x 6 mesecev
- 94,13 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107422RIE | G 1/2 IT | 24 | 57.5 | Čas dobave: Predvidoma 3 - 5 dni | 259,85 € |  | |
| 107420RIE | G 1/4 IT | 19 | 55.5 | Čas dobave: Predvidoma 3 - 5 dni | 244,74 € | | |
| 107421RIE | G 3/8 IT | 19 | 54.5 | Čas dobave: Predvidoma 3 - 5 dni | 244,74 € | |
Opis
Quick-connect coupling I.D. 7.8, Stainless steel 1.4305, G 1/2 IT, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C
"One-hand quick disconnect couplings, one side sealing, made of stainless steel 1.4305.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, machine and plant engineering, manufacturing industry, medical technology, chemical / pharmaceutical industry, food technology, aerospace, mining, offshore.
"Tehnični podatki in specifikacije
| DN | 7.8 |
| Povezava | G 1/2 IT |
| Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
| Ohišje | Stainless steel 1.4305 |
| Tesnilo | FKM |
| Min. temperatura medija [°C] | -15 |
| Max. temperatura medija [°C] | 200 |
| Min. sobna temperatura [°C] | -15 |
| Max. sobna temperatura [°C] | 200 |
| Pretok | 1800 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Stainless steel 1.4305 |
| Rokav | Stainless steel 1.4305 |
| Pritrdilni obroč | Stainless steel |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| a/f [mm] | 24 |
| Dolžina [mm] | 57.5 |
