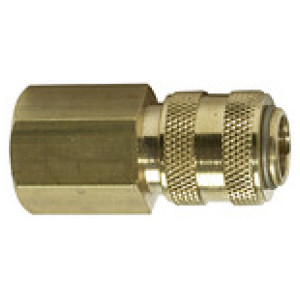

Hitre spojke I.D. 5 »connect line«, G 1/4 notranji navoj slika
Hitre spojke I.D. 5 »connect line«, G 1/4 notranji navoj slika

* slike so simbolične

Hitre spojke I.D. 5 »connect line«, G 1/4 notranji navoj

SKU: 115628RIE
EAN: 4047322058971

Quick-connect coupling I.D. 5 »connect line«, bright brass, G 1/4 IT, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Low-priced, one-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"
Čas dobave: Predvidoma 3 - 5 dni
5,08 €
Primerjaj z ostalimi
Šifra Povezava a/f [mm] Dolžina [mm] Zaloga Cena Nakup Natisni
115630RIE G 3/8 IT 19 37.4
Čas dobave: Predvidoma 3 - 5 dni
5,08 € Natisni
115626RIE G 1/8 IT 14 35.9
Čas dobave: Predvidoma 3 - 5 dni
5,08 € Natisni
115628RIE G 1/4 IT 17 37.4
Čas dobave: Predvidoma 3 - 5 dni
5,08 € Natisni

Opis

Quick-connect coupling I.D. 5 »connect line«, bright brass, G 1/4 IT, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C

"

Low-priced, one-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.

To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.

Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.

"

Tehnični podatki in specifikacije

DN 5
Povezava G 1/4 IT
a/f [mm] 17
Dolžina [mm] 37.4
Delovni tlak 0 to 35 bar, maximum static working pressure (non-pulsating)
Ohišje Brass with a bare metal surface
Tesnilo NBR
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 100
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 100
Pretok 560 l/min (air)
Vzmet Stainless steel
Telo ventila Brass with a bare metal surface
Rokav Brass with a bare metal surface
Pritrdilni obroč Stainless steel
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Zaporni zatič Stainless steel
