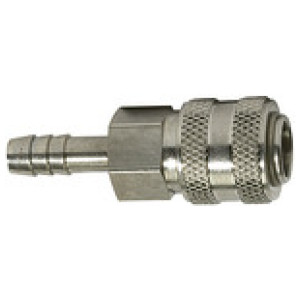

Hitre spojke I.D. 5 »connect line« cev I.D. 4
SKU: 115635RIE
EAN: 4047322059244
Quick-connect coupling I.D. 5 »connect line« nickel-plated brass, Sleeve I.D. 4, Operating pressure 0-35 bar, Temp. -20°C to 100°C
"Low-priced, one-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Šifra | Povezava | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|
115635RIE | I.D. 4 | 41.9 | Čas dobave: Predvidoma 3 - 5 dni | 7,05 € | | |
115639RIE | I.D. 9 | 46.9 | Čas dobave: Predvidoma 3 - 5 dni | 7,05 € | | |
115637RIE | I.D. 6 | 46.9 | Čas dobave: Predvidoma 3 - 5 dni | 7,05 € | |
Opis
Quick-connect coupling I.D. 5 »connect line« nickel-plated brass, Sleeve I.D. 4, Operating pressure 0-35 bar, Temp. -20°C to 100°C
"Low-priced, one-hand quick disconnect couplings, one side sealing, compact with a large bore and only a small pressure drop.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology.
"Tehnični podatki in specifikacije
DN | 5 |
Povezava | I.D. 4 |
a/f [mm] | 14 |
Dolžina [mm] | 41.9 |
Delovni tlak | 0 to 35 bar, maximum static working pressure (non-pulsating) |
Ohišje | Nickel-plated brass |
Tesnilo | NBR |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Pretok | 560 l/min (air) |
Vzmet | Stainless steel |
Telo ventila | Nickel-plated brass |
Rokav | Nickel-plated brass |
Pritrdilni obroč | Stainless steel |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Zaporni zatič | Stainless steel |
