* slike so simbolične

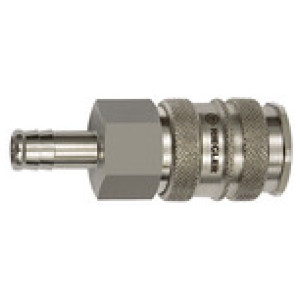

Hitre spojke I.D. 10, /poniklanaMedenina, I.D.16
SKU: 142168RIE
EAN: 4047322568326
Quick-connect coupling I.D. 10, Steel / nickel-plated brass, Sleeve I.D. 16, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Single-sided blocking and robust quick connect coupling with high flow performance.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, Machine and plant engineering, Measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.
"Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
141560RIE | I.D. 13 | Čas dobave: Predvidoma 3 - 5 dni | 24,99 € | | |
142168RIE | I.D. 16 | Čas dobave: Predvidoma 3 - 5 dni | 24,99 € | | |
141559RIE | I.D. 10 | Čas dobave: Predvidoma 3 - 5 dni | 24,99 € | |
Opis
Quick-connect coupling I.D. 10, Steel / nickel-plated brass, Sleeve I.D. 16, Operating pressure 0 - 35 bar, Temp. -20 °C to 100 °C
"Single-sided blocking and robust quick connect coupling with high flow performance.
To prevent injuries or a ""whiplash"" effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
These quick disconnect couplings are not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Areas of application: Pneumatic system, Machine and plant engineering, Measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, workshops, automotive, food technology, aerospace.
"Tehnični podatki in specifikacije
DN | 10 |
Povezava | I.D. 16 |
a/f [mm] | 24 |
Dolžina [mm] | 75.0 |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Tesnilo | NBR |
Pretok | 3500 l/min (air) |
Vzmet | Stainless steel |
Navojni kos | Nickel-plated brass |
Ventil | Nickel-plated brass |
Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
Delovni tlak | 0 - 35 bar |
Ohišje | Nickel-plated brass |
Rokav | Galvanised steel |
