* slike so simbolične
Glušnik, Sintrani bron/medenina, Izpušni, nastavljiv, M5, AF 8
SKU: 113313RIE
EAN: 4047322100892
Silencer, Sintered bronze/brass, Exhaust, adjustable, M5, AF 8, Operating pressure max. 10 bar, Operating temp. -10 °C to 250 °C
The volume of exhaust air can be set by means of an adjusting screw with a lock nut.
Čas dobave: Predvidoma 3 - 5 dni
12,47 €

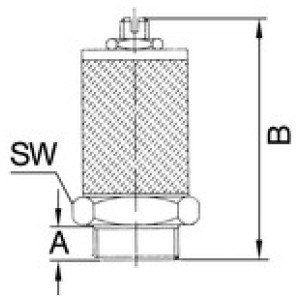

| Šifra | Navoj | A [mm] | a/f [mm] | B min. [mm] | B max. [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 113316RIE | R 3/8 | 10.5 | 22 | 47.5 | 60.5 | Čas dobave: Predvidoma 3 - 5 dni | 25,11 € |  | |
| 113318RIE | R 3/4 | 12.0 | 30 | 75.4 | 90.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,88 € | | |
| 113313RIE | M5 | 4.0 | 8 | 21.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,47 € | | |
| 113317RIE | R 1/2 | 12.0 | 22 | 49.0 | 62.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,11 € | | |
| 113314RIE | R 1/8 | 8.0 | 16 | 38.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,47 € | | |
| 113315RIE | R 1/4 | 9.5 | 16 | 39.5 | 49.5 | Čas dobave: Predvidoma 3 - 5 dni | 12,61 € | | |
| 113319RIE | R 1 | 14.5 | 36 | 75.9 | 90.5 | Čas dobave: Predvidoma 3 - 5 dni | 28,65 € | |
Opis
Silencer, Sintered bronze/brass, Exhaust, adjustable, M5, AF 8, Operating pressure max. 10 bar, Operating temp. -10 °C to 250 °C
The volume of exhaust air can be set by means of an adjusting screw with a lock nut.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 250 |
| Navoj | M5 |
| a/f [mm] | 8 |
| A [mm] | 4.0 |
| B min. [mm] | 21.0 |
| B max. [mm] | 28.0 |
