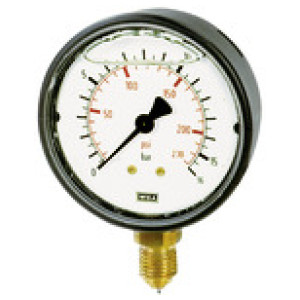

Glicerinski manometer, priklop spodaj, G 1/4, 0 - 1.6 bar, Ø 63
SKU: 102075RIE
EAN: 9010327
Glycerine pressure gauge, plastic housing, Connection radial bottom, G 1/4, Goods class 2.5, Measurement range 0 - 1.6 bar, Ø 63
Glycerine-filled bourdon-tube pressure gauge.
For measurements in areas with high, dynamic pressure loads and vibration levels.
Suitable for gaseous or liquid media which do not corrode copper alloy,
do not have high viscosity and do not crystallise.
| Šifra | Merilno območje min. bar | Merilno območje min. psi | Spodnja/Zgornja meja območja | Stopnja rasti na območju skale - bar [bar] | Merilno območje max. bar | Merilno območje max. psi | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 102074RIE | 0 | 0 | Positive pressure | 0.05 | 1 | 14.5 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € |  | |
| 102082RIE | 0 | 0 | Positive pressure | 2 | 40 | 580 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102070RIE | -1 | -14.5 | Vacuum/Positive pressure | 0.1 | 1.5 | 21 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102068RIE | -1 | -14.5 | Vacuum | 0.05 | 0 | 0 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102076RIE | 0 | 0 | Positive pressure | 0.1 | 2.5 | 36 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102085RIE | 0 | 0 | Positive pressure | 5 | 160 | 2.300 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102079RIE | 0 | 0 | Positive pressure | 0.5 | 10 | 145 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102087RIE | 0 | 0 | Positive pressure | 20 | 400 | 5.800 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102071RIE | -1 | -14.5 | Vacuum/Positive pressure | 0.2 | 3 | 42 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102084RIE | 0 | 0 | Positive pressure | 5 | 100 | 1.450 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102072RIE | -1 | -14.5 | Vacuum/Positive pressure | 0.2 | 5 | 72 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102069RIE | -1 | -14.5 | Vacuum/Positive pressure | 0.05 | 0.6 | 8.7 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102080RIE | 0 | 0 | Positive pressure | 0.5 | 16 | 230 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102083RIE | 0 | 0 | Positive pressure | 2 | 60 | 860 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102086RIE | 0 | 0 | Positive pressure | 10 | 250 | 3.600 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102078RIE | 0 | 0 | Positive pressure | 0.2 | 6 | 86 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102077RIE | 0 | 0 | Positive pressure | 0.2 | 4 | 58 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102081RIE | 0 | 0 | Positive pressure | 1 | 25 | 360 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102073RIE | -1 | -14.5 | Vacuum/Positive pressure | 0.5 | 9 | 130 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | | |
| 102075RIE | 0 | 0 | Positive pressure | 0.05 | 1.6 | 23 | Čas dobave: Predvidoma 3 - 5 dni | 33,16 € | |
Opis
Glycerine pressure gauge, plastic housing, Connection radial bottom, G 1/4, Goods class 2.5, Measurement range 0 - 1.6 bar, Ø 63
Glycerine-filled bourdon-tube pressure gauge.
For measurements in areas with high, dynamic pressure loads and vibration levels.
Suitable for gaseous or liquid media which do not corrode copper alloy,
do not have high viscosity and do not crystallise.
Tehnični podatki in specifikacije
| Povezava | G 1/4 |
| Položaj povezave | radial on bottom |
| Premer [mm] | 63 |
| Vrsta | 113.13 |
| Razred točnosti | 2.5 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 60 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 60 |
| Prednje steklo | PMMA, welded to housing |
| Ohišje | Plastic, black (with panel-mounting bezel) |
| Merilni element | Copper alloy |
| Premikanje | Copper alloy |
| Merilno območje max. bar | 1.6 |
| Stopnja rasti na območju skale - bar [bar] | 0.05 |
| Spodnja/Zgornja meja območja | Positive pressure |
| Merilno območje max. psi | 23 |
| Material Prozessanschluss | Copper alloy |
