* slike so simbolične

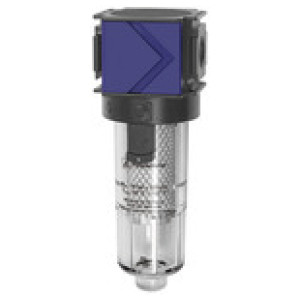

Filter z aktivnim ogljem »variobloc«PC zbir.Vel. 2G 3/4
SKU: 100695RIE
EAN: 4047322390934
Active charcoal filter »variobloc« with PC container, 0.003 mg/m³, Size 2, G 3/4, Input pressure max. 16 bar, Temp. max. 50 °C
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter z aktivnim ogljem »variobloc«PC zbir.Vel. 2G 3/4
Kakovost zraka po ISO 8573.1: Class 1 dirt, class 1 oil
Merjenje pretoka: At P1 = 7 bar and pressure drop Δp = 0,2 bar
Navoj: G 3/4
Posoda: Polycarbonate container
Serija: variobloc
Vsebnost olja v ostanku [mg/m³]: 0.003
B [mm]: 193.0
Merjenje pretoka: At P1 = 7 bar and pressure drop Δp = 0,2 bar
Navoj: G 3/4
Posoda: Polycarbonate container
Serija: variobloc
Vsebnost olja v ostanku [mg/m³]: 0.003
B [mm]: 193.0

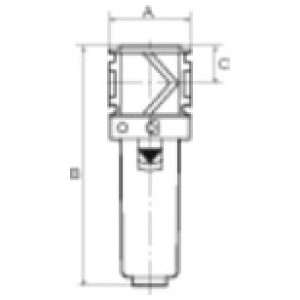

| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100695RIE | G 3/4 | 2 | 26.0 | 70.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100696RIE | G 1 | 2 | 26.0 | 124.0 | 193.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100692RIE | G 1/4 | 1 | 22.0 | 48.0 | 142.0 | 800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100694RIE | G 1/2 | 2 | 26.0 | 70.0 | 193.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100693RIE | G 3/8 | 1 | 22.0 | 48.0 | 142.0 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Active charcoal filter »variobloc« with PC container, 0.003 mg/m³, Size 2, G 3/4, Input pressure max. 16 bar, Temp. max. 50 °C
Activated carbon filters are used to absorb oil vapour from the compressed air. The incoming compressed air should be dry and free of impurities (upstream connection of a micro-filter is recommended).
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Pretok [l/min] | 1300 |
| Posoda | Polycarbonate container |
| A [mm] | 70.0 |
| B [mm] | 193.0 |
| C [mm] | 26.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 7 bar and pressure drop Δp = 0,2 bar |
| Kakovost zraka po ISO 8573.1 | Class 1 dirt, class 1 oil |
| Vsebnost olja v ostanku [mg/m³] | 0.003 |
