Filter z aktivnim ogljem »multifix«PC zbir.Vel.1,G 1/4

SKU: 100539RIE
EAN: 4047322131193

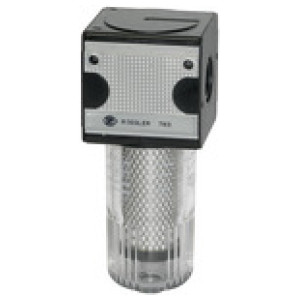

Active charcoal filter »multifix« with PC container, 0.005 mg/m³, Size 1, G 1/4, Input pressure max. 16 bar, Temp. max. 60 °C

For filtering odours out of compressed air.

The activated carbon absorbs the oil vapour molecules contained in the compressed air.

A separate filter route prevents activated carbon particles from entering the air flow.

Čas dobave: Predvidoma 3 - 5 dni
115,28 €
ali od 10,76 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,76 € x 12 mesecev
  • 21,05 € x 6 mesecev
  • 41,64 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

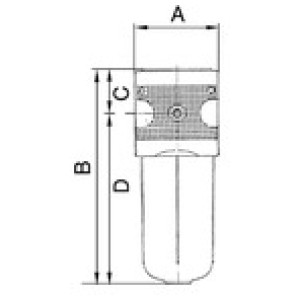

Šifra Navoj Velikost DN C [mm] A [mm] D [mm] B [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
100539RIE G 1/4 1 6 27.0 47.8 109.8 136.8 380
Čas dobave: Predvidoma 3 - 5 dni
115,28 € Natisni
100540RIE G 1/2 3 15 34.5 68.8 132.1 166.6 1500
Čas dobave: Predvidoma 3 - 5 dni
188,45 € Natisni

Opis

Active charcoal filter »multifix« with PC container, 0.005 mg/m³, Size 1, G 1/4, Input pressure max. 16 bar, Temp. max. 60 °C

For filtering odours out of compressed air.

The activated carbon absorbs the oil vapour molecules contained in the compressed air.

A separate filter route prevents activated carbon particles from entering the air flow.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 16
Velikost 1
Tesnilo NBR
Element filtra Activated carbon-POM
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Pretok [l/min] 380
DN 6
Ohišje Die-cast zinc
Posoda Polycarbonate container
A [mm] 47.8
B [mm] 136.8
C [mm] 27.0
D [mm] 109.8
Serija multifix
Merjenje pretoka At P1 = 6 bar and pressure drop Δp = 0.2 bar
Vsebnost olja v ostanku [mg/m³] 0.005
