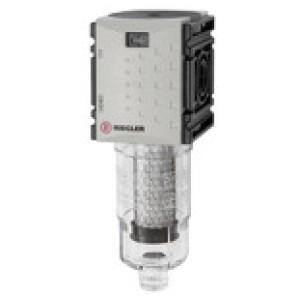

Filter z aktivnim ogljem »FUTURA-mali« PC zbir. Vel. 0, G1/4

SKU: 142453RIE
EAN: 4047322556781

Active charcoal filter »FUTURA-mini« with PC container, 0.005 mg/m³, Size 0, G 1/4, Input pressure 0 - 12 bar, Temp. -10°C to 50°C

Activated carbon filters in modern design for compliance with strict compressed air purity requirements.

Activated carbon filters are used to absorb oil vapour up to a residual oil content of 0.005 mg/m³ from compressed air and gases.

Čas dobave: Predvidoma 3 - 5 dni
87,03 €
ali od 15,93 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 15,93 € x 6 mesecev
  • 31,50 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Zaloga Cena Nakup Natisni
142453RIE
Čas dobave: Predvidoma 3 - 5 dni
87,03 € Natisni

Opis

Active charcoal filter »FUTURA-mini« with PC container, 0.005 mg/m³, Size 0, G 1/4, Input pressure 0 - 12 bar, Temp. -10°C to 50°C

Activated carbon filters in modern design for compliance with strict compressed air purity requirements.

Activated carbon filters are used to absorb oil vapour up to a residual oil content of 0.005 mg/m³ from compressed air and gases.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 12
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 50
Ohišje PA66 GF60
Priključni navoj Plastic
Element filtra Activated carbon
Pretok [l/min] 470
Posoda Polycarbonate container

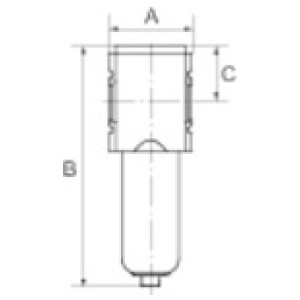

A [mm] 43.0
B [mm] 125.0
C [mm] 27.0
Serija FUTURA-mini
Srednje Compressed air, neutral gases
Merjenje pretoka At P2 = 6 bar and pressure drop Δp = 0.2 bar
Vsebnost olja v ostanku [mg/m³] 0.005
Tesnilo NBR
