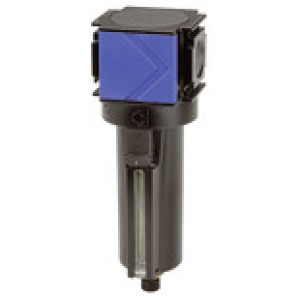

Filter »variobloc« s kovinsko posodo, Velikost 2, G 3/4
SKU: 125318RIE
EAN: 4047322168588
Filter »variobloc« with metal container incl. viewing tube, Size 2, G 3/4, Input pressure max. 20 bar, Manual bleeder valve
Centrifugal separators with a sintered filter element.
Filtration takes place in a 2-stage process comprising cyclone separation (condensate) and a PE filter element (particles).
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Obrestno financiranje
- 11,70 € x 12 mesecev
- 22,88 € x 6 mesecev
- 45,26 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

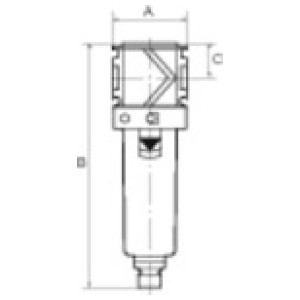

| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 125317RIE | G 1/2 | 2 | 26.0 | 70.0 | 202.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 124,84 € |  | |
| 125315RIE | G 1/4 | 1 | 22.0 | 48.0 | 155.0 | 1800 | Čas dobave: Predvidoma 3 - 5 dni | 87,54 € | | |
| 125316RIE | G 3/8 | 1 | 22.0 | 48.0 | 155.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 87,54 € | | |
| 125319RIE | G 1 | 2 | 26.0 | 124.0 | 202.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 176,25 € | | |
| 125318RIE | G 3/4 | 2 | 26.0 | 70.0 | 202.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 125,04 € | |
Opis
Filter »variobloc« with metal container incl. viewing tube, Size 2, G 3/4, Input pressure max. 20 bar, Manual bleeder valve
Centrifugal separators with a sintered filter element.
Filtration takes place in a 2-stage process comprising cyclone separation (condensate) and a PE filter element (particles).
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 2 |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 3500 |
| Posoda | Metal container with viewing tube |
| A [mm] | 70.0 |
| B [mm] | 202.0 |
| C [mm] | 26.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Rang filtra [µm] | 40 |
| Odtok kondenzata | Manual |
