Filter »variobloc«PC zbir.Zašč. kletkaVel.1,G 3/8
SKU: 124765RIE
EAN: 4047322397100

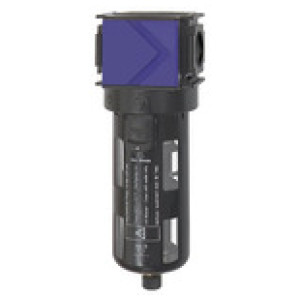

Filter »variobloc«, Polycarbonate container and protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Manual bleeder valve
Centrifugal separators with a sintered filter element.
Filtration takes place in a 2-stage process comprising cyclone separation (condensate) and a PE filter element (particles).
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Obrestno financiranje
- 12,81 € x 6 mesecev
- 25,34 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 124773RIE | G 1 | 2 | 26.0 | 124.0 | 202.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 152,68 € |  | |
| 124763RIE | G 1/4 | 1 | 22.0 | 48.0 | 155.0 | 1800 | Čas dobave: Predvidoma 3 - 5 dni | 69,61 € | | |
| 124770RIE | G 3/4 | 2 | 26.0 | 70.0 | 202.0 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 101,36 € | | |
| 124767RIE | G 1/2 | 2 | 26.0 | 70.0 | 202.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | 101,36 € | | |
| 124765RIE | G 3/8 | 1 | 22.0 | 48.0 | 155.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 69,61 € | |
Opis
Filter »variobloc«, Polycarbonate container and protective cage, Size 1, G 3/8, Input pressure max. 16 bar, Manual bleeder valve
Centrifugal separators with a sintered filter element.
Filtration takes place in a 2-stage process comprising cyclone separation (condensate) and a PE filter element (particles).
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Pretok [l/min] | 2000 |
| Posoda | Polycarbonate container with protective cage |
| A [mm] | 48.0 |
| B [mm] | 155.0 |
| C [mm] | 22.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Rang filtra [µm] | 40 |
| Odtok kondenzata | Manual |
