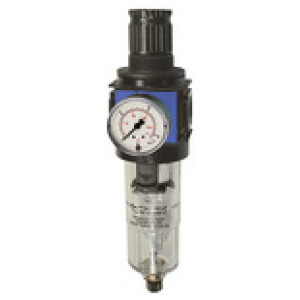

Filter regulator »variobloc« z PC zbiralnik, Velikost 1, G 1/4
SKU: 100657RIE
EAN: 4047322168601
Filter regulator »variobloc«, PC container and pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined
with a centrifugal separator.
The pressure setting can be locked by pushing the knob down.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Povpraševanje
Navoj: G 1/4
Odtok kondenzata: Manual
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Serija: variobloc

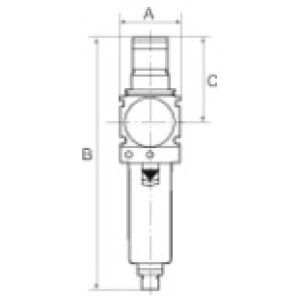

B [mm]: 203.0
| Šifra | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100660RIE | G 3/4 | 2 | 70.0 | 98.0 | 273.0 | 6500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100659RIE | G 1/2 | 2 | 70.0 | 98.0 | 273.0 | 5500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100661RIE | G 1 | 2 | 124.0 | 98.0 | 273.0 | 6500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100657RIE | G 1/4 | 1 | 48.0 | 68.0 | 203.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100658RIE | G 3/8 | 1 | 48.0 | 68.0 | 203.0 | 3000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Filter regulator »variobloc«, PC container and pressure gauge, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined
with a centrifugal separator.
The pressure setting can be locked by pushing the knob down.
Approved series in modern industrial design, with the following key benefits:
- Simple handling
- Convenient modular assembly thanks to innovative fasteners
- Excellent flow values
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Rang filtra [µm] | 40 |
| Max. temperatura medija [°C] | 50 |
| Max. sobna temperatura [°C] | 50 |
| Vzmet pokrova motorja | POM |
| Odtok kondenzata | Manual |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 10 |
| Pretok [l/min] | 2000 |
| Posoda | Polycarbonate container |
| A [mm] | 48.0 |
| B [mm] | 203.0 |
| C [mm] | 68.0 |
| Serija | variobloc |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
