Filter regulator »G-mali«, 5 µm, Velikost 200, G 1/8, 1.5 - 9 bar slika
Filter regulator »G-mali«, 5 µm, Velikost 200, G 1/8, 1.5 - 9 bar slika
Filter regulator »G-mali«, 5 µm, Velikost 200, G 1/8, 1.5 - 9 bar slika

* slike so simbolične

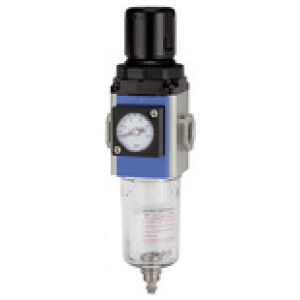

Filter regulator »G-mali«, 5 µm, Velikost 200, G 1/8, 1.5 - 9 bar

SKU: 116354RIE
EAN: 4047322308595

Filter regulator »G-mini« PC container, Mounting bracket, 5 µm, Size 200, G 1/8, Input press. max. 10 bar, Control range 1.5-9 bar

Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.

The pressure setting can be locked by pushing the button down.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
116354RIE G 1/8
Čas dobave: Predvidoma 3 - 5 dni
 ? Povpraševanje Natisni
116355RIE G 1/4
Čas dobave: Predvidoma 3 - 5 dni
 ? Povpraševanje Natisni

Opis

Filter regulator »G-mini« PC container, Mounting bracket, 5 µm, Size 200, G 1/8, Input press. max. 10 bar, Control range 1.5-9 bar

Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator.

The pressure setting can be locked by pushing the button down.

Tehnični podatki in specifikacije

Navoj G 1/8
Max. vhodni tlak [bar] 10
Velikost 200
Ohišje Die-cast aluminium
Tesnilo NBR
Rang filtra [µm] 5
Max. temperatura medija [°C] 70
Max. sobna temperatura [°C] 70
Vzmet pokrova motorja POM
Min. krmilno območje [bar] 1.5
Max. krmilno območje [bar] 9
Posoda Polycarbonate container
Pretok [l/min] 1000
Odtok kondenzata Semi-automatic
A [mm] 38.0
B [mm] 161.0
C [mm] 68.0
D [mm] 93.0
Serija G-mini
Merjenje pretoka At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
