Filter reg.»FUTURA« Kov. Vel.2, G 1/2, 0.2-4 bar Pol avto.
SKU: 139492RIE
EAN: 4047322534215

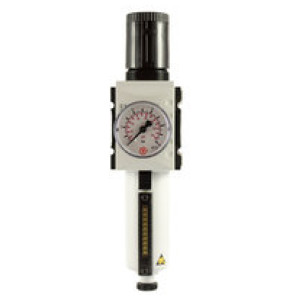

Filter regulator »FUTURA«, with metal container, Viewing tube, Pressure gauge, 5 µm, Size 2, G 1/2, Control range 0.2-4 bar, Semi
Filter regulators with excellent flow rates in modern design.
The regulator knob can be latched and locked.
Čas dobave: Predvidoma 3 - 5 dni
165,54 €
ali od 15,53 € / mesec
Izračunaj obrok
Obrestno financiranje
- 15,53 € x 12 mesecev
- 30,39 € x 6 mesecev
- 60,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | Zaslon manometra max. [bar] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 151823RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 8 | 10 | 52.0 | 96.0 | 226.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € |  | |
| 151867RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 16 | 25 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151845RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 52.0 | 96.0 | 243.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151855RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 16 | 25 | 63.0 | 110.0 | 277.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151831RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 16 | 25 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151819RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 16 | 25 | 52.0 | 96.0 | 226.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 139486RIE | G 3/8 | Semi-automatic | 0.2 | 2 | 4 | 6 | 63.0 | 110.0 | 261.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 139491RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 261.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151868RIE | G 1 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151865RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 8 | 10 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151854RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 10 | 16 | 63.0 | 110.0 | 277.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151861RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 16 | 25 | 63.0 | 110.0 | 277.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151869RIE | G 1 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151860RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 10 | 16 | 63.0 | 110.0 | 277.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151832RIE | G 1 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151856RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 63.0 | 110.0 | 277.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151848RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 10 | 16 | 52.0 | 96.0 | 243.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151817RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 8 | 10 | 52.0 | 96.0 | 226.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151822RIE | G 3/8 | Semi-automatic | 0.2 | 1 | 4 | 6 | 52.0 | 96.0 | 226.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151826RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 1 | 1.6 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 139489RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 16 | 25 | 63.0 | 110.0 | 261.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151858RIE | G 1/2 | Fully-automatic | 0.2 | 2 | 4 | 6 | 63.0 | 110.0 | 277.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151820RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 226.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151825RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 16 | 25 | 52.0 | 96.0 | 226.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151859RIE | G 1/2 | Fully-automatic | 0.5 | 2 | 8 | 10 | 63.0 | 110.0 | 277.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151863RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 2 | 2.5 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 139493RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 8 | 10 | 63.0 | 110.0 | 261.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 139485RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 261.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151847RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 8 | 10 | 52.0 | 96.0 | 243.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151864RIE | G 3/4 | Fully-automatic | 0.2 | 4 | 4 | 6 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151833RIE | G 1 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151852RIE | G 3/8 | Fully-automatic | 0.2 | 2 | 4 | 6 | 63.0 | 110.0 | 277.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151838RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 243.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 139495RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 16 | 25 | 63.0 | 110.0 | 261.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151816RIE | G 1/4 | Semi-automatic | 0.2 | 1 | 4 | 6 | 52.0 | 96.0 | 226.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151846RIE | G 3/8 | Fully-automatic | 0.2 | 1 | 4 | 6 | 52.0 | 96.0 | 243.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151843RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 16 | 25 | 52.0 | 96.0 | 243.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151842RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 10 | 16 | 52.0 | 96.0 | 243.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151849RIE | G 3/8 | Fully-automatic | 0.5 | 1 | 16 | 25 | 52.0 | 96.0 | 243.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 139488RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 10 | 16 | 63.0 | 110.0 | 261.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 139492RIE | G 1/2 | Semi-automatic | 0.2 | 2 | 4 | 6 | 63.0 | 110.0 | 261.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151857RIE | G 1/2 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 277.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151828RIE | G 3/4 | Semi-automatic | 0.2 | 4 | 4 | 6 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 139490RIE | G 1/2 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 63.0 | 110.0 | 261.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151840RIE | G 1/4 | Fully-automatic | 0.2 | 1 | 4 | 6 | 52.0 | 96.0 | 243.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 139487RIE | G 3/8 | Semi-automatic | 0.5 | 2 | 8 | 10 | 63.0 | 110.0 | 261.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151844RIE | G 3/8 | Fully-automatic | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 243.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151850RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 1 | 1.6 | 63.0 | 110.0 | 277.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151851RIE | G 3/8 | Fully-automatic | 0.1 | 2 | 2 | 2.5 | 63.0 | 110.0 | 277.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 139484RIE | G 3/8 | Semi-automatic | 0.1 | 2 | 1 | 1.6 | 63.0 | 110.0 | 261.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151814RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 1 | 1.6 | 52.0 | 96.0 | 226.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151815RIE | G 1/4 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 52.0 | 96.0 | 226.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151818RIE | G 1/4 | Semi-automatic | 0.5 | 1 | 10 | 16 | 52.0 | 96.0 | 226.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 151871RIE | G 1 | Fully-automatic | 0.5 | 4 | 8 | 10 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151824RIE | G 3/8 | Semi-automatic | 0.5 | 1 | 10 | 16 | 52.0 | 96.0 | 226.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | | |
| 139494RIE | G 1/2 | Semi-automatic | 0.5 | 2 | 10 | 16 | 63.0 | 110.0 | 261.0 | 5200 | Čas dobave: Predvidoma 3 - 5 dni | 165,54 € | | |
| 151829RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 8 | 10 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151866RIE | G 3/4 | Fully-automatic | 0.5 | 4 | 10 | 16 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151872RIE | G 1 | Fully-automatic | 0.5 | 4 | 10 | 16 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151873RIE | G 1 | Fully-automatic | 0.5 | 4 | 16 | 25 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151837RIE | G 1 | Semi-automatic | 0.5 | 4 | 16 | 25 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151870RIE | G 1 | Fully-automatic | 0.2 | 4 | 4 | 6 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151839RIE | G 1/4 | Fully-automatic | 0.1 | 1 | 2 | 2.5 | 52.0 | 96.0 | 243.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151827RIE | G 3/4 | Semi-automatic | 0.1 | 4 | 2 | 2.5 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151835RIE | G 1 | Semi-automatic | 0.5 | 4 | 8 | 10 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151836RIE | G 1 | Semi-automatic | 0.5 | 4 | 10 | 16 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151853RIE | G 3/8 | Fully-automatic | 0.5 | 2 | 8 | 10 | 63.0 | 110.0 | 277.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 202,13 € | | |
| 151862RIE | G 3/4 | Fully-automatic | 0.1 | 4 | 1 | 1.6 | 85.0 | 137.0 | 343.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 369,32 € | | |
| 151830RIE | G 3/4 | Semi-automatic | 0.5 | 4 | 10 | 16 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151841RIE | G 1/4 | Fully-automatic | 0.5 | 1 | 8 | 10 | 52.0 | 96.0 | 243.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 145,84 € | | |
| 151834RIE | G 1 | Semi-automatic | 0.2 | 4 | 4 | 6 | 85.0 | 137.0 | 326.0 | 13000 | Čas dobave: Predvidoma 3 - 5 dni | 304,29 € | | |
| 151821RIE | G 3/8 | Semi-automatic | 0.1 | 1 | 2 | 2.5 | 52.0 | 96.0 | 226.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 105,55 € | |
Opis
Filter regulator »FUTURA«, with metal container, Viewing tube, Pressure gauge, 5 µm, Size 2, G 1/2, Control range 0.2-4 bar, Semi
Filter regulators with excellent flow rates in modern design.
The regulator knob can be latched and locked.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Pretok [l/min] | 5200 |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.2 |
| Max. krmilno območje [bar] | 4 |
| Zaslon manometra max. [bar] | 6 |
| Posoda | Metal container with viewing tube |

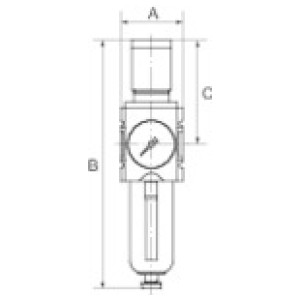

| A [mm] | 63.0 |
| B [mm] | 261.0 |
| C [mm] | 110.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp= 1 bar |
