Filter »multifix«PC zbir.Zašč. kletkaVel. 3G 3/4
SKU: 100520RIE
EAN: 4047322131070

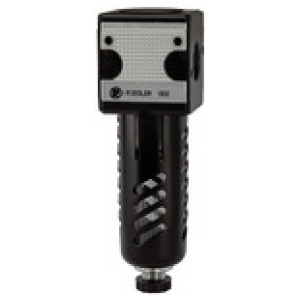

Filter »multifix«, PC container and protective cage, 5 µm, Size 3, G 3/4, Input pressure max. 16 bar, Med./ambient temp. max. 60°C
Centrifugal separators with a sintered filter element.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 15,93 € x 6 mesecev
- 31,50 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Ohišje | Velikost | DN | Rang filtra [µm] | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
100521RIE | G 1 | Aluminium | 5 | 25 | 40 | 52.0 | 100.0 | 253.8 | 305.8 | 10500 | Čas dobave: Predvidoma 3 - 5 dni | 229,82 € | | |
100519RIE | G 1/2 | Die-cast zinc | 3 | 15 | 5 | 34.5 | 68.8 | 147.3 | 181.8 | 5850 | Čas dobave: Predvidoma 3 - 5 dni | 87,16 € | | |
100517RIE | G 1/4 | Die-cast zinc | 1 | 6 | 5 | 27.0 | 47.8 | 125.1 | 152.1 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 53,90 € | | |
100518RIE | G 3/8 | Die-cast zinc | 1 | 10 | 5 | 27.0 | 47.8 | 125.1 | 152.1 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 53,90 € | | |
100520RIE | G 3/4 | Die-cast zinc | 3 | 20 | 5 | 34.5 | 68.8 | 147.3 | 181.8 | 5850 | Čas dobave: Predvidoma 3 - 5 dni | 87,16 € | | |
133112RIE | G 1 | Die-cast aluminium | 4 | 25 | 5 | 53.0 | 85.0 | 190.0 | 243.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 178,68 € | | |
133111RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 5 | 53.0 | 85.0 | 190.0 | 243.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 178,68 € | |
Opis
Filter »multifix«, PC container and protective cage, 5 µm, Size 3, G 3/4, Input pressure max. 16 bar, Med./ambient temp. max. 60°C
Centrifugal separators with a sintered filter element.
Tehnični podatki in specifikacije
Navoj | G 3/4 |
Max. vhodni tlak [bar] | 16 |
Velikost | 3 |
Rang filtra [µm] | 5 |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 5850 |
DN | 20 |
Ohišje | Die-cast zinc |
Posoda | Polycarbonate container with protective cage |

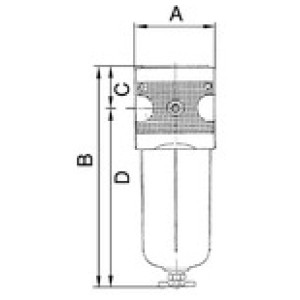

A [mm] | 68.8 |
B [mm] | 181.8 |
C [mm] | 34.5 |
D [mm] | 147.3 |
Serija | multifix |
Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1 bar |
Odtok kondenzata | Semi-automatic |
