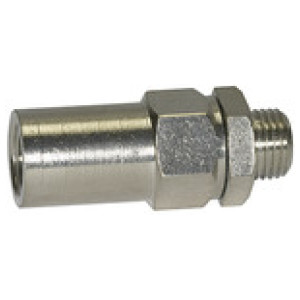

Filter »inline«, 36 µm, G 1/8 IT/ET, AF 17
SKU: 101520RIE
EAN: 4047322203692
Filter »inline«, 36 µm, G 1/8 interior / exterior, AF 17, Input pressure max. 18 bar, Temp. range 0 °C to 80 °C, Housing: Brass
For integration in a pneumatic system if different system sections or tools require different air qualities.
Čas dobave: Predvidoma 3 - 5 dni
20,33 €

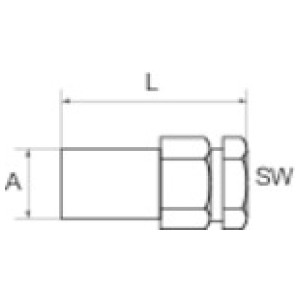

| Šifra | Navoj | A [mm] | a/f [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 101519RIE | G 1/2 IT/IT | 28.0 | 28 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,48 € |  | |
| 101518RIE | G 3/8 IT/IT | 22.0 | 24 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 34,59 € | | |
| 101523RIE | G 1/2 IT/ET | 28.0 | 28 | 70.0 | Čas dobave: Predvidoma 3 - 5 dni | 64,48 € | | |
| 101516RIE | G 1/8 IT/IT | 16.0 | 17 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,33 € | | |
| 101521RIE | G 1/4 IT/ET | 18.0 | 19 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,62 € | | |
| 101517RIE | G 1/4 IT/IT | 18.0 | 19 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,62 € | | |
| 101520RIE | G 1/8 IT/ET | 16.0 | 17 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,33 € | | |
| 101522RIE | G 3/8 IT/ET | 22.0 | 24 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 34,59 € | |
Opis
Filter »inline«, 36 µm, G 1/8 interior / exterior, AF 17, Input pressure max. 18 bar, Temp. range 0 °C to 80 °C, Housing: Brass
For integration in a pneumatic system if different system sections or tools require different air qualities.
Tehnični podatki in specifikacije
| Navoj | G 1/8 IT/ET |
| Max. vhodni tlak [bar] | 18 |
| Max. temperaturno območje [°C] | 80 |
| Ohišje | Brass |
| Element filtra | Nickel-plated brass |
| Rang filtra [µm] | 36 |
| Serija | inline |
| Notranji deli | NBR |
| a/f [mm] | 17 |
| A [mm] | 16.0 |
| L [mm] | 41.0 |
