Filter»G«,Kov. pos.,Kazalno okence,5 µm,Vel. 600,G 3/4
SKU: 116408RIE
EAN: 4047322308045

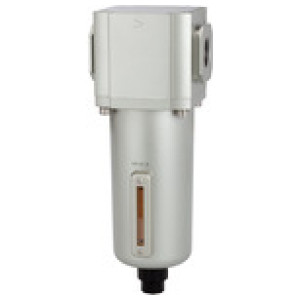

Filter »G« metal container, Viewing tube, Mounting bracket, 5 µm, Size 600, G 3/4, Input pres. max 10 bar, Working pres. 1.5-9 bar
Centrifugal separators with a sintered filter element.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Filter»G«,Kov. pos.,Kazalno okence,5 µm,Vel. 600,G 3/4
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 3/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
D [mm]: 219.0
B [mm]: 256.0
Navoj: G 3/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
D [mm]: 219.0
B [mm]: 256.0
| Šifra | Navoj | Odtok kondenzata | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 116412RIE | G 3/4 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 116414RIE | G 1 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | 155,95 € | | |
| 116413RIE | G 1 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 116408RIE | G 3/4 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Filter »G« metal container, Viewing tube, Mounting bracket, 5 µm, Size 600, G 3/4, Input pres. max 10 bar, Working pres. 1.5-9 bar
Centrifugal separators with a sintered filter element.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 10 |
| Min. delovni tlak [bar] | 1.5 |
| Max. delovni tlak [bar] | 9 |
| Velikost | 600 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| Posoda | Metal container with viewing tube |
| Pretok [l/min] | 7800 |
| Odtok kondenzata | Semi-automatic |

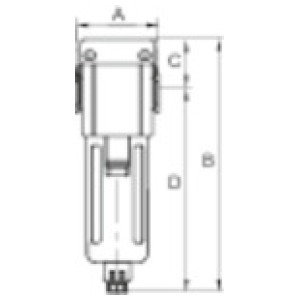

| A [mm] | 85.0 |
| B [mm] | 256.0 |
| C [mm] | 37.0 |
| D [mm] | 219.0 |
| Serija | G |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
