Filter»FUTURA«Kov. pos.5µm, Vel. 1, G3/8, Pol avto.
SKU: 156553RIE
EAN: 4047322627450
Filter »FUTURA« with metal container and viewing tube, 5 µm, Size 1, G 3/8, 1.5 - 16 bar, Temp. -10 °C to 50 °C, Semi-automatic
Filters with excellent flow rates in modern design.
Čas dobave: Predvidoma 3 - 5 dni
73,50 €
ali od 13,55 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,55 € x 6 mesecev
- 26,79 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 156557RIE | G 3/8 | Fully-automatic | 1 | 34.0 | 52.0 | 181.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 118,28 € |  | |
| 156555RIE | G 1 | Semi-automatic | 4 | 58.0 | 85.0 | 247.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 185,16 € | | |
| 156553RIE | G 3/8 | Semi-automatic | 1 | 34.0 | 52.0 | 164.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 73,50 € | | |
| 156561RIE | G 1 | Fully-automatic | 4 | 58.0 | 85.0 | 264.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 243,55 € | | |
| 139507RIE | G 1/2 | Semi-automatic | 2 | 42.5 | 63.0 | 193.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 111,26 € | | |
| 156559RIE | G 1/2 | Fully-automatic | 2 | 42.5 | 63.0 | 209.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 163,68 € | | |
| 156556RIE | G 1/4 | Fully-automatic | 1 | 34.0 | 52.0 | 181.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 118,28 € | | |
| 156552RIE | G 1/4 | Semi-automatic | 1 | 34.0 | 52.0 | 164.0 | 2200 | Čas dobave: Predvidoma 3 - 5 dni | 73,50 € | | |
| 156554RIE | G 3/4 | Semi-automatic | 4 | 58.0 | 85.0 | 247.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 185,16 € | | |
| 156560RIE | G 3/4 | Fully-automatic | 4 | 58.0 | 85.0 | 264.0 | 8000 | Čas dobave: Predvidoma 3 - 5 dni | 243,55 € | | |
| 156558RIE | G 3/8 | Fully-automatic | 2 | 42.5 | 63.0 | 209.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 163,68 € | | |
| 139506RIE | G 3/8 | Semi-automatic | 2 | 42.5 | 63.0 | 193.5 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 111,26 € | |
Opis
Filter »FUTURA« with metal container and viewing tube, 5 µm, Size 1, G 3/8, 1.5 - 16 bar, Temp. -10 °C to 50 °C, Semi-automatic
Filters with excellent flow rates in modern design.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Min. vhodni tlak [bar] | 1.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Pretok [l/min] | 2200 |
| Posoda | Metal container with viewing tube |

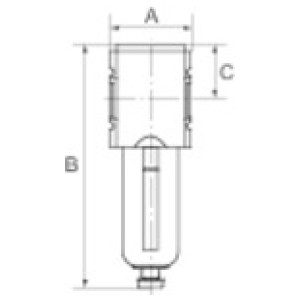

| A [mm] | 52.0 |
| B [mm] | 164.0 |
| C [mm] | 34.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Tesnilo | NBR |
| Odtok kondenzata | Semi-automatic |
