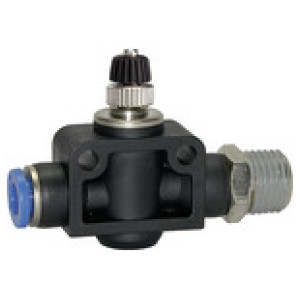

Enosmerni ventil »Blue serija«, Ravni, R 1/8 o.
SKU: 109961RIE
EAN: 4047322200691

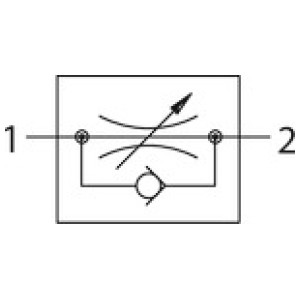

Throttle check valve »Blue Series«, Straight, R 1/8 o., for hose exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
15,91 €

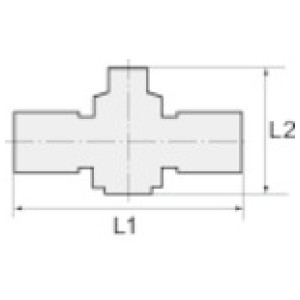

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | Min. L2 [mm] | Max. L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 109961RIE | R 1/8 | 8 | 14 | 41.5 | 47.2 | 58.4 | Čas dobave: Predvidoma 3 - 5 dni | 15,91 € |  | |
| 109968RIE | R 3/8 | 12 | 21 | 51.2 | 55.9 | 83.0 | Čas dobave: Predvidoma 3 - 5 dni | 26,89 € | | |
| 109970RIE | R 1/2 | 12 | 21 | 52.0 | 56.6 | 86.2 | Čas dobave: Predvidoma 3 - 5 dni | 27,88 € | | |
| 109967RIE | R 3/8 | 10 | 17 | 48.3 | 54.9 | 71.8 | Čas dobave: Predvidoma 3 - 5 dni | 26,10 € | | |
| 109959RIE | R 1/8 | 4 | 10 | 26.9 | 29.0 | 45.9 | Čas dobave: Predvidoma 3 - 5 dni | 10,31 € | | |
| 109962RIE | R 1/4 | 6 | 14 | 38.0 | 43.6 | 56.2 | Čas dobave: Predvidoma 3 - 5 dni | 13,94 € | | |
| 109960RIE | R 1/8 | 6 | 12 | 37.8 | 43.0 | 53.6 | Čas dobave: Predvidoma 3 - 5 dni | 12,70 € | | |
| 109966RIE | R 3/8 | 8 | 17 | 41.9 | 47.2 | 62.1 | Čas dobave: Predvidoma 3 - 5 dni | 17,81 € | | |
| 109963RIE | R 1/4 | 8 | 14 | 41.1 | 47.1 | 60.6 | Čas dobave: Predvidoma 3 - 5 dni | 15,91 € | | |
| 109965RIE | R 1/4 | 12 | 21 | 51.8 | 55.6 | 82.3 | Čas dobave: Predvidoma 3 - 5 dni | 26,89 € | | |
| 109964RIE | R 1/4 | 10 | 17 | 47.6 | 55.2 | 71.4 | Čas dobave: Predvidoma 3 - 5 dni | 26,10 € | | |
| 109969RIE | R 1/2 | 10 | 21 | 48.0 | 54.6 | 75.4 | Čas dobave: Predvidoma 3 - 5 dni | 26,10 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/8 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 58.4 |
| Min. L2 [mm] | 41.5 |
| Max. L2 [mm] | 47.2 |
| a/f [mm] | 14 |
| Material | Plastic and nickel-plated brass |
