* slike so simbolične

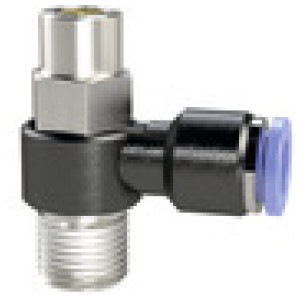

Enos. ventil Blue serija, dušilec zraka izhod, R 3/8
SKU: 136012RIE
EAN: 4047322500159
Throttle check valve »Blue Series«, Discharge throttle, R 3/8 o., for hose exterior Ø 6 mm, pmax short term 15barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
22,78 €
Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
136013RIE | R 3/8 | 8 | 19 | 29.3 | 45.3 | Čas dobave: Predvidoma 3 - 5 dni | 22,78 € | | |
136018RIE | R 1/2 | 12 | 24 | 36.5 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 32,85 € | | |
136005RIE | R 1/8 | 4 | 12 | 21.3 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,04 € | | |
136008RIE | R 1/4 | 4 | 14 | 25.2 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,73 € | | |
136015RIE | R 3/8 | 12 | 19 | 35.5 | 43.5 | Čas dobave: Predvidoma 3 - 5 dni | 27,66 € | | |
136006RIE | R 1/8 | 6 | 12 | 21.3 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,64 € | | |
136007RIE | R 1/8 | 8 | 12 | 25.3 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,64 € | | |
136017RIE | R 1/2 | 10 | 24 | 36.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 32,85 € | | |
136010RIE | R 1/4 | 8 | 14 | 28.4 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,73 € | | |
136011RIE | R 1/4 | 10 | 14 | 32.6 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,73 € | | |
136016RIE | R 1/2 | 8 | 24 | 32.8 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 31,93 € | | |
136012RIE | R 3/8 | 6 | 19 | 29.1 | 45.3 | Čas dobave: Predvidoma 3 - 5 dni | 22,78 € | | |
136014RIE | R 3/8 | 10 | 19 | 33.1 | 45.3 | Čas dobave: Predvidoma 3 - 5 dni | 23,05 € | | |
136009RIE | R 1/4 | 6 | 14 | 25.2 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,73 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 60 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Navoj | R 3/8 |
Za cevi O.D. [mm] | 6 |
L1 [mm] | 29.1 |
L2 [mm] | 45.3 |
a/f [mm] | 19 |
Material | Plastic and nickel-plated brass |
