* slike so simbolične
Enos. ventil Blue serija, dušilec zraka izhod, R 1/4
SKU: 110049RIE
EAN: 4047322201339

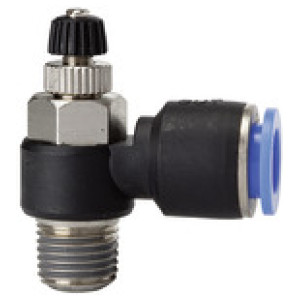

Throttle check valve »Blue Series«, Discharge throttle, R 1/4 o., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
7,65 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Min. L2 [mm] | Max. L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 110045RIE | R 1/8 | 6 | 10 | 22.9 | 37.8 | 44.0 | Na zalogi | 6,10 € |  | |
| 110051RIE | R 1/4 | 10 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,66 € | | |
| 110058RIE | R 1/2 | 8 | 24 | 32.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 18,48 € | | |
| 110048RIE | R 1/4 | 4 | 14 | 24.1 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,28 € | | |
| 110059RIE | R 1/2 | 10 | 24 | 35.5 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | | |
| 110057RIE | R 1/2 | 6 | 24 | 29.6 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 17,67 € | | |
| 110060RIE | R 1/2 | 12 | 24 | 36.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | | |
| 110049RIE | R 1/4 | 6 | 14 | 24.9 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,65 € | | |
| 110055RIE | R 3/8 | 10 | 19 | 32.5 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 110047RIE | R 1/8 | 10 | 10 | 30.1 | 37.8 | 44.0 | Na zalogi | 6,70 € | | |
| 110050RIE | R 1/4 | 8 | 14 | 28.4 | 44.0 | 51.0 | Na zalogi | 7,65 € | | |
| 110054RIE | R 3/8 | 8 | 19 | 29.2 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 110052RIE | R 1/4 | 12 | 14 | 32.0 | 44.0 | 51.0 | Na zalogi | 8,66 € | | |
| 110046RIE | R 1/8 | 8 | 10 | 24.8 | 37.8 | 44.0 | Na zalogi | 6,10 € | | |
| 110053RIE | R 3/8 | 6 | 19 | 26.6 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,30 € | | |
| 110044RIE | R 1/8 | 4 | 10 | 22.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,10 € | | |
| 110056RIE | R 3/8 | 12 | 19 | 35.3 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/4 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 24.9 |
| Min. L2 [mm] | 44.0 |
| Max. L2 [mm] | 51.0 |
| a/f [mm] | 14 |
| Material | Plastic and nickel-plated brass |
