* slike so simbolične

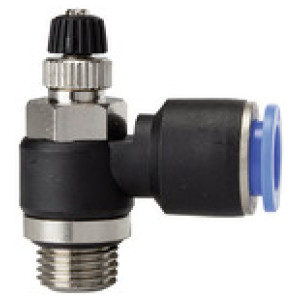

Enos. ventil Blue serija, dušilec zraka dohod plin, G 1/2
SKU: 109993RIE
EAN: 4047322201551

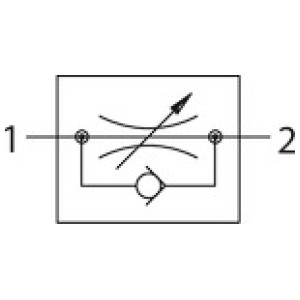

Throttle check valve »Blue Series«, Supply air throttle, G 1/2 o., for hose exterior Ø 12 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
20,58 €

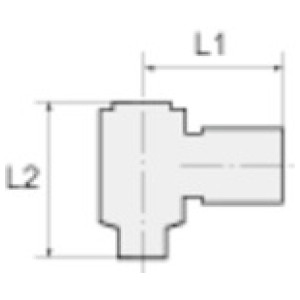

| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Min. L2 [mm] | Max. L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 109986RIE | G 1/4 | 10 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,59 € |  | |
| 109977RIE | M5 | 4 | 8 | 20.0 | 29.0 | 31.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,76 € | | |
| 109992RIE | G 1/2 | 10 | 24 | 35.5 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | | |
| 109981RIE | G 1/8 | 8 | 10 | 25.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,36 € | | |
| 109979RIE | G 1/8 | 4 | 10 | 22.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,36 € | | |
| 109987RIE | G 1/4 | 12 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,59 € | | |
| 109983RIE | G 1/4 | 4 | 14 | 24.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 9,96 € | | |
| 109989RIE | G 3/8 | 10 | 19 | 32.5 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,75 € | | |
| 109984RIE | G 1/4 | 6 | 14 | 24.9 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,13 € | | |
| 109980RIE | G 1/8 | 6 | 10 | 22.9 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,36 € | | |
| 109991RIE | G 1/2 | 8 | 24 | 32.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,58 € | | |
| 109985RIE | G 1/4 | 8 | 14 | 28.4 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,13 € | | |
| 109982RIE | G 1/8 | 10 | 10 | 30.1 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,89 € | | |
| 109990RIE | G 3/8 | 12 | 19 | 35.3 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,75 € | | |
| 109993RIE | G 1/2 | 12 | 24 | 36.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 20,58 € | | |
| 109978RIE | M5 | 6 | 8 | 21.7 | 29.0 | 31.9 | Čas dobave: Predvidoma 3 - 5 dni | 6,76 € | | |
| 109988RIE | G 3/8 | 8 | 19 | 29.3 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,36 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 1/2 |
| Za cevi O.D. [mm] | 12 |
| L1 [mm] | 36.3 |
| Min. L2 [mm] | 53.0 |
| Max. L2 [mm] | 59.2 |
| a/f [mm] | 24 |
| Material | Plastic and nickel-plated brass |
