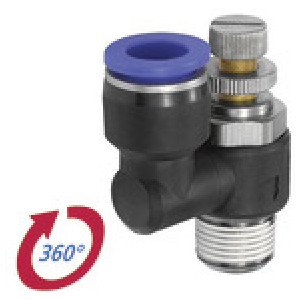

Enos. ventil Blue serija, dušilec zraka izhod, R 1/8
SKU: 136022RIE
EAN: 4047322500272

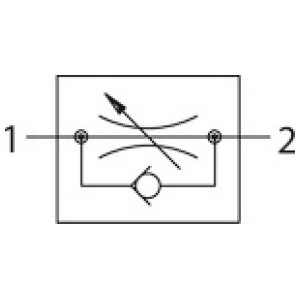

Throttle check valve »Blue Series«, Discharge throttle, R 1/8 o., for hose exterior Ø 6 mm, pmax short term 15barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
16,37 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L3 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 136026RIE | R 1/4 | 8 | 14 | 20.5 | 27.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,36 € |  | |
| 136023RIE | R 1/8 | 8 | 12 | 18.0 | 26.5 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,75 € | | |
| 136029RIE | R 3/8 | 10 | 19 | 23.0 | 31.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 34,70 € | | |
| 136019RIE | M5 | 4 | 8 | 11.5 | 20.5 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 17,40 € | | |
| 136030RIE | R 3/8 | 12 | 19 | 23.0 | 31.0 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | 35,44 € | | |
| 136027RIE | R 1/4 | 10 | 14 | 22.0 | 30.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 19,72 € | | |
| 136024RIE | R 1/4 | 4 | 14 | 20.5 | 27.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,98 € | | |
| 136021RIE | R 1/8 | 4 | 12 | 18.0 | 26.5 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,37 € | | |
| 136025RIE | R 1/4 | 6 | 14 | 20.5 | 27.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,93 € | | |
| 136020RIE | M5 | 6 | 8 | 13.0 | 22.0 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 17,40 € | | |
| 136028RIE | R 1/4 | 12 | 14 | 22.0 | 30.0 | 48.0 | Čas dobave: Predvidoma 3 - 5 dni | 28,55 € | | |
| 136022RIE | R 1/8 | 6 | 12 | 18.0 | 26.5 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,37 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/8 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 42.0 |
| L2 [mm] | 18.0 |
| L3 [mm] | 26.5 |
| a/f [mm] | 12 |
| Material | Plastic and nickel-plated brass |
