* slike so simbolične

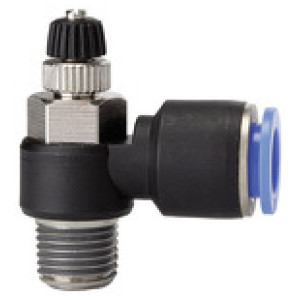

Enos. ventil Blue serija, dušilec zraka dohod plin, R 1/2
SKU: 110008RIE
EAN: 4047322233866

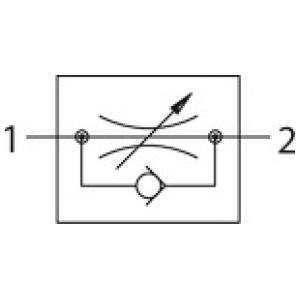

Throttle check valve »Blue Series«, Supply air throttle, R 1/2 o., for hose exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
18,48 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Min. L2 [mm] | Max. L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 110002RIE | R 1/4 | 12 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,66 € |  | |
| 109994RIE | R 1/8 | 4 | 10 | 22.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,10 € | | |
| 109995RIE | R 1/8 | 6 | 10 | 22.9 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,10 € | | |
| 110000RIE | R 1/4 | 8 | 14 | 28.4 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,65 € | | |
| 110008RIE | R 1/2 | 8 | 24 | 32.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 18,48 € | | |
| 109999RIE | R 1/4 | 6 | 14 | 24.9 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,65 € | | |
| 110005RIE | R 3/8 | 10 | 19 | 32.5 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 110007RIE | R 1/2 | 6 | 24 | 29.6 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 17,67 € | | |
| 109998RIE | R 1/4 | 4 | 14 | 24.1 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,31 € | | |
| 110006RIE | R 3/8 | 12 | 19 | 35.3 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 110003RIE | R 3/8 | 6 | 19 | 26.6 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 12,50 € | | |
| 110004RIE | R 3/8 | 8 | 19 | 29.2 | 48.7 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,32 € | | |
| 110001RIE | R 1/4 | 10 | 14 | 32.0 | 44.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,66 € | | |
| 109996RIE | R 1/8 | 8 | 10 | 25.3 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,61 € | | |
| 109997RIE | R 1/8 | 10 | 10 | 30.1 | 37.8 | 44.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,75 € | | |
| 110010RIE | R 1/2 | 12 | 24 | 36.3 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | | |
| 110009RIE | R 1/2 | 10 | 24 | 35.5 | 53.0 | 59.2 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | R 1/2 |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 32.3 |
| Min. L2 [mm] | 53.0 |
| Max. L2 [mm] | 59.2 |
| a/f [mm] | 24 |
| Material | Plastic and nickel-plated brass |
