Dušilnik vibracij 300 mm PVC cevjočep I.D. 8G 3/8 Z.N.
SKU: 142894RIE
EAN: 4047322560306

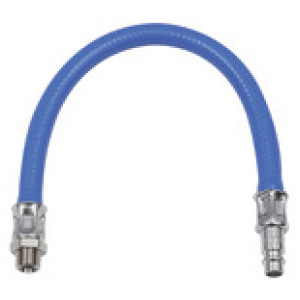

Vibration damper with 300 mm PVC workshop hose, plug I.D. 8, ISO 6150 C, G 3/8 ET, pressed, max. 15 bar, Temp. -20 °C to 60 °C
When using pulsating tools it is recommended to observe the standard ISO 6150, § 7.1.
It recommends installing a minimum 300 mm long, flexible hose between the pulsating tool and the quick-connect coupling.
The oscillating forces are taken by the hose piece and thus increase the service life of the quick-connect coupling. No warranty can be made for couplings mounted directly on pulsating tools.
| Šifra | Povezava | DN | Connection Nominal Diameter | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 142186RIE | G 1/2 ET | 10 | Čas dobave: Predvidoma 3 - 5 dni | 16,19 € |  | ||
| 142190RIE | G 1 ET | 19 | Čas dobave: Predvidoma 3 - 5 dni | 86,85 € | | ||
| 142182RIE | G 1/4 ET | 7.2 - 7.8 | Čas dobave: Predvidoma 3 - 5 dni | 19,65 € | | ||
| 142895RIE | G 1/2 ET | 11 | ISO 6150-C-17 | Čas dobave: Predvidoma 3 - 5 dni | 16,19 € | | |
| 142894RIE | G 3/8 ET | 8 | ISO 6150-C-14 | Čas dobave: Predvidoma 3 - 5 dni | 29,78 € | | |
| 142187RIE | G 1/2 ET | 12 | Čas dobave: Predvidoma 3 - 5 dni | 14,38 € | |
Opis
Vibration damper with 300 mm PVC workshop hose, plug I.D. 8, ISO 6150 C, G 3/8 ET, pressed, max. 15 bar, Temp. -20 °C to 60 °C
When using pulsating tools it is recommended to observe the standard ISO 6150, § 7.1.
It recommends installing a minimum 300 mm long, flexible hose between the pulsating tool and the quick-connect coupling.
The oscillating forces are taken by the hose piece and thus increase the service life of the quick-connect coupling. No warranty can be made for couplings mounted directly on pulsating tools.
Tehnični podatki in specifikacije
| Povezava | G 3/8 ET |
| Connection Nominal Diameter | ISO 6150-C-14 |
| Max. obratovalni tlak [bar] | 15 |
| DN | 8 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 60 |
