* slike so simbolične

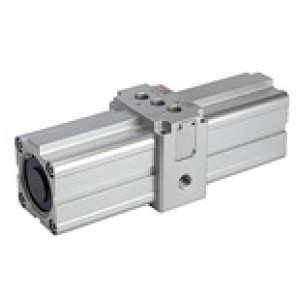

Double piston pressure multiplier(booster)without controller,G1/8
SKU: 101529RIE
EAN: 9002100
Double piston pressure multiplier (booster) without controller, G 1/8, Piston Ø 40 mm, Reinforced 2:1, Input pressure 2 - 10 bar
The booster increases the existing supply pressure for one or more actuators in a fixed transmission ratio (see technical data) and thus provides the required working pressure.
The booster is not suitable for applications that have a longer lasting air consumption - such as pneumatic grinders, air motors, vacuum generation via Venturi nozzles, etc.
The design uses two coupled oscillating differential pistons and integrated check valves. To avoid fluctuations in output pressure, the use of a tank for pressure build-up and storage of compressed air is recommended.
Operation with filtered and unlubricated or lubricated compressed air possible (once lubricated, continuous lubrication is necessary).
Obrestno financiranje
- 11,21 € x 48 mesecev
- 14,33 € x 36 mesecev
- 20,58 € x 24 mesecev
- 39,40 € x 12 mesecev
- 77,06 € x 6 mesecev
- 152,42 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Bat Ø [mm] | Max. temperaturno območje [°C] | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 101529RIE | G 1/8 | 40 | 50 | 64.2 | 194.0 | Čas dobave: Predvidoma 3 - 5 dni | 420,91 € |  | |
| 101530RIE | G 3/8 | 63 | 60 | 98.0 | 290.0 | Čas dobave: Predvidoma 3 - 5 dni | 693,58 € | |
Opis
Double piston pressure multiplier (booster) without controller, G 1/8, Piston Ø 40 mm, Reinforced 2:1, Input pressure 2 - 10 bar
The booster increases the existing supply pressure for one or more actuators in a fixed transmission ratio (see technical data) and thus provides the required working pressure.
The booster is not suitable for applications that have a longer lasting air consumption - such as pneumatic grinders, air motors, vacuum generation via Venturi nozzles, etc.
The design uses two coupled oscillating differential pistons and integrated check valves. To avoid fluctuations in output pressure, the use of a tank for pressure build-up and storage of compressed air is recommended.
Operation with filtered and unlubricated or lubricated compressed air possible (once lubricated, continuous lubrication is necessary).
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 10 |
| Bat Ø [mm] | 40 |
| Max. izhodni tlak [bar] | 20 |
| Min. vhodni tlak [bar] | 2 |
| Ohišje | Anodised aluminium |
| Tesnilo | NBR |
| Ovoj | Anodised aluminium jacket |
| Možnosti montaže | Any position, with 4 mounting holes |
| P2:P1 | 2:1 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| L [mm] | 194.0 |
| H [mm] | 64.2 |
