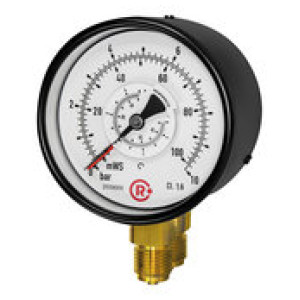

Differential pressure gauge, parallel, 2 x G1/2, 0 - 1,6bar, Ø100 slika

* slike so simbolične

Differential pressure gauge, parallel, 2 x G1/2, 0 - 1,6bar, Ø100

SKU: 199332RIE
EAN: 4047322699891

Differential pressure gauge, 2 parallel radial male end connections below, G1/2, Goods class 1.6, Measurement range 0-1,6 bar,Ø100

Bourdon-tube pressure gauge with parallel male connector and two separate measuring systems.

For measuring differential pressures or two different pressures.

for gaseous, liquid, not highly viscous and non-crystallising media which do not attack copper alloys.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Stopnja rasti na območju skale - bar [bar] Merilno območje max. bar Zaloga Cena Nakup Natisni
199336RIE 0.2 10
Ni na zalogi
 ? Povpraševanje Natisni
199332RIE 0.05 1.6
Ni na zalogi
 ? Povpraševanje Natisni
199331RIE 0.02 1
Ni na zalogi
 ? Povpraševanje Natisni
199334RIE 0.1 4
Ni na zalogi
 ? Povpraševanje Natisni
199333RIE 0.05 2.5
Ni na zalogi
 ? Povpraševanje Natisni
199335RIE 0.1 6
Ni na zalogi
 ? Povpraševanje Natisni

Opis

Differential pressure gauge, 2 parallel radial male end connections below, G1/2, Goods class 1.6, Measurement range 0-1,6 bar,Ø100

Bourdon-tube pressure gauge with parallel male connector and two separate measuring systems.

For measuring differential pressures or two different pressures.

for gaseous, liquid, not highly viscous and non-crystallising media which do not attack copper alloys.

Tehnični podatki in specifikacije

Povezava G 1/2
Položaj povezave radial on bottom
Premer [mm] 100
Razred točnosti 1.6
Ohišje Steel, black
Max. temperatura medija [°C] 60
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 60
Merilni element Copper alloy
Premikanje Brass
Prednje steklo Instrument glass
Okvir steel, black
Merilno območje max. bar 1.6
Stopnja rasti na območju skale - bar [bar] 0.05
Spodnja/Zgornja meja območja Positive pressure
Material Prozessanschluss Brass
