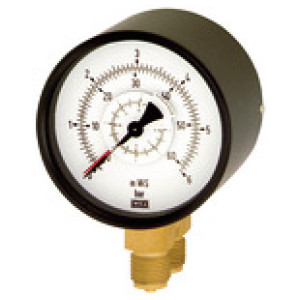

Diferencialni manometer, vzporedni, 2 x G 1/2, 0-6 bar, Ø 100
SKU: 102582RIE
EAN: 9042237
Differential pressure gauge, 2 parallel radial male end connections below, G 1/2, Goods class 1.6, Measurement range 0-6 bar, Ø100
Bourdon-tube pressure gauge with parallel male connector and two separate measuring systems.
For measuring differential pressures or two different pressures.
Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Obrestno financiranje
- 19,09 € x 12 mesecev
- 37,34 € x 6 mesecev
- 73,85 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Stopnja rasti na območju skale - bar [bar] | Merilno območje max. bar | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 102583RIE | 0.2 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 204,03 € |  | |
| 102582RIE | 0.1 | 6 | Čas dobave: Predvidoma 3 - 5 dni | 204,03 € | | |
| 102581RIE | 0.1 | 4 | Čas dobave: Predvidoma 3 - 5 dni | 204,03 € | | |
| 102579RIE | 0.05 | 1.6 | Čas dobave: Predvidoma 3 - 5 dni | 204,03 € | | |
| 102578RIE | 0.02 | 1 | Čas dobave: Predvidoma 3 - 5 dni | 204,03 € | | |
| 102580RIE | 0.05 | 2.5 | Čas dobave: Predvidoma 3 - 5 dni | 204,03 € | |
Opis
Differential pressure gauge, 2 parallel radial male end connections below, G 1/2, Goods class 1.6, Measurement range 0-6 bar, Ø100
Bourdon-tube pressure gauge with parallel male connector and two separate measuring systems.
For measuring differential pressures or two different pressures.
Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Tehnični podatki in specifikacije
| Povezava | G 1/2 |
| Položaj povezave | radial on bottom |
| Premer [mm] | 100 |
| Vrsta | 111.10 |
| Razred točnosti | 1.6 |
| Ohišje | Steel, black |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 60 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 60 |
| Merilni element | Copper alloy |
| Premikanje | Copper alloy |
| Prednje steklo | Flat instrument glass |
| Okvir | steel, black |
| Merilno območje max. bar | 6 |
| Stopnja rasti na območju skale - bar [bar] | 0.1 |
| Spodnja/Zgornja meja območja | Positive pressure |
| Material Prozessanschluss | Copper alloy |
