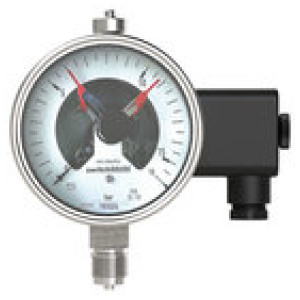

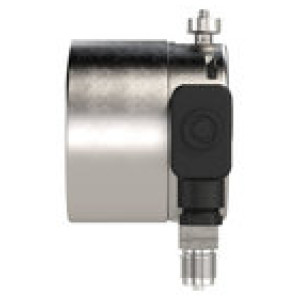

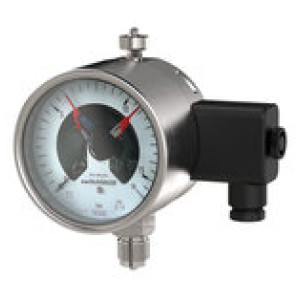

Contact pressure gauge, G 1/2 radial bottom, 0-160,0 bar, Ø 100
SKU: 129751RIE
EAN: 14428649
Contact pressure gauge, magnetic spring contact, Connection radial bottom, G 1/2, Goods class 1.0, Meas. range 0 - 160 bar, Ø 100
Robust bourdon-tube pressure gauge with electrical contact (magnetic spring contact), contact type 821.21.
The electrical contact opens an electrical circuit when the first set limit value is reached and closes it again at the second limit value.
Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Current ratings:
Make rating 1.0, A
Break rating 1.0, A
Continuous load 0.6 A
Pin assignment 821.21:
1. Contact makes when pointer reaches set point
2. Contact breaks when pointer reaches set point
Povpraševanje
Merilni element: CrNi steel
Ohišje: CrNi steel 1.4301
Okvir: CrNi steel
Položaj povezave: radial on bottom
Prednje steklo: Multilayer safety glass
Premikanje: CrNi steel
Spodnja/Zgornja meja območja: Positive pressure
Vrsta: PGS23
Max. preklopna zmogljivost: 30 W / 50 VA
| Šifra | Stopnja rasti na območju skale - bar [bar] | Merilno območje max. bar | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 129745RIE | 0.2 | 10 | Ni na zalogi | ? | Povpraševanje |  |
| 129744RIE | 0.1 | 6 | Ni na zalogi | ? | Povpraševanje | |
| 129743RIE | 0.1 | 4 | Ni na zalogi | ? | Povpraševanje | |
| 129748RIE | 1 | 40 | Ni na zalogi | ? | Povpraševanje | |
| 129753RIE | 10 | 400 | Ni na zalogi | ? | Povpraševanje | |
| 129746RIE | 0.5 | 16 | Ni na zalogi | ? | Povpraševanje | |
| 129750RIE | 2 | 100 | Ni na zalogi | ? | Povpraševanje | |
| 129747RIE | 0.5 | 25 | Ni na zalogi | ? | Povpraševanje | |
| 129751RIE | 5 | 160 | Ni na zalogi | ? | Povpraševanje | |
| 129749RIE | 1 | 60 | Ni na zalogi | ? | Povpraševanje | |
| 129752RIE | 5 | 250 | Ni na zalogi | ? | Povpraševanje | |
| 129742RIE | 0.05 | 2.5 | Ni na zalogi | ? | Povpraševanje | |
Opis
Contact pressure gauge, magnetic spring contact, Connection radial bottom, G 1/2, Goods class 1.0, Meas. range 0 - 160 bar, Ø 100
Robust bourdon-tube pressure gauge with electrical contact (magnetic spring contact), contact type 821.21.
The electrical contact opens an electrical circuit when the first set limit value is reached and closes it again at the second limit value.
Suitable for gaseous or liquid media which do not corrode copper alloy, do not have high viscosity and do not crystallise.
Current ratings:
Make rating 1.0, A
Break rating 1.0, A
Continuous load 0.6 A
Pin assignment 821.21:
1. Contact makes when pointer reaches set point
2. Contact breaks when pointer reaches set point
Tehnični podatki in specifikacije
| Položaj povezave | radial on bottom |
| Premer [mm] | 100 |
| Vrsta | PGS23 |
| Razred točnosti | 1.0 |
| Ohišje | CrNi steel 1.4301 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 200 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 60 |
| Premikanje | CrNi steel |
| Prednje steklo | Multilayer safety glass |
| Okvir | CrNi steel |
| Merilni element | CrNi steel |
| Nazivna obratovalna napetost (MSR) Ueff max. [V] | 250 |
| Max. preklopna zmogljivost | 30 W / 50 VA |
| Merilno območje max. bar | 160 |
| Stopnja rasti na območju skale - bar [bar] | 5 |
| Spodnja/Zgornja meja območja | Positive pressure |
| Material Prozessanschluss | CrNi steel |
