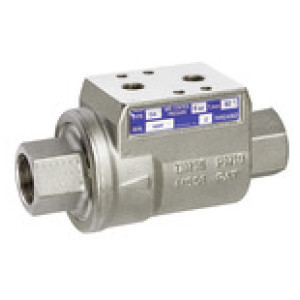

Coaxial valve pneumat. actuated, single-acting NO, FKM, Rp 3/8
SKU: 137360RIE
EAN: 4047322513432
Coaxial valve pneumat. actuated, single-acting, NO, nickel-plated brass, Temp. -20°C to 150°C, Control pressure 4.2-8 bar, Rp 3/8
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 15,81 € x 12 mesecev
- 30,94 € x 6 mesecev
- 61,19 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

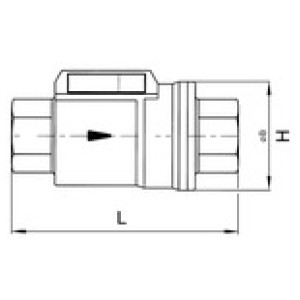

Šifra | Navoj | DN | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|
137364RIE | Rp 1 1 /4 | 32 | 86.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 357,18 € | | |
137362RIE | Rp 3/4 | 20 | 63.5 | 135.0 | Čas dobave: Predvidoma 3 - 5 dni | 220,03 € | | |
137365RIE | Rp 1 1/2 | 40 | 96.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 446,79 € | | |
137361RIE | Rp 1/2 | 15 | 51.7 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 184,59 € | | |
137366RIE | Rp 2 | 50 | 109.0 | 207.0 | Čas dobave: Predvidoma 3 - 5 dni | 611,72 € | | |
137360RIE | Rp 3/8 | 10 | 46.0 | 98.0 | Čas dobave: Predvidoma 3 - 5 dni | 168,93 € | | |
137363RIE | Rp 1 | 25 | 69.0 | 143.0 | Čas dobave: Predvidoma 3 - 5 dni | 255,90 € | |
Opis
Coaxial valve pneumat. actuated, single-acting, NO, nickel-plated brass, Temp. -20°C to 150°C, Control pressure 4.2-8 bar, Rp 3/8
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
Tehnični podatki in specifikacije
Ohišje | Nickel-plated brass |
Max. obratovalni tlak [bar] | 10 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 150 |
Povezava | NAMUR interface, direct: 2 x G 1/8 |
Navoj | Rp 3/8 |
Notranji deli | Nickel-plated brass |
Vzmet | Stainless steel |
Vgradni položaj | Any |
Različica | single-acting - spring to open |
Tesnilo | FKM |
Min. vodeni tlak [bar] | 4.2 |
Max. vodeni tlak [bar] | 8 |
DN | 10 |
H [mm] | 46.0 |
L [mm] | 98.0 |
