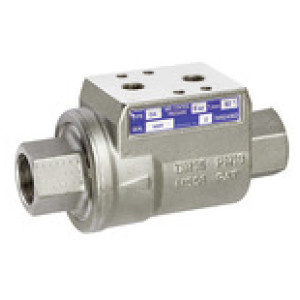

Coaxial valve pneumat. actuated, double-acting, NC, NBR, Rp 3/8
SKU: 103723RIE
EAN: 4047322079020
Coaxial valve pneumat. actuated, double-acting, NC, nickel-plated brass, Temp. -20°C to 80°C, Control pressure 3-8 bar, Rp 3/8
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
Obrestno financiranje
- 13,85 € x 12 mesecev
- 27,09 € x 6 mesecev
- 53,58 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

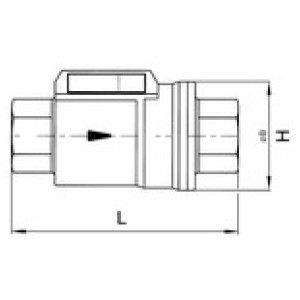

| Šifra | Navoj | DN | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 133389RIE | Rp 1 1/2 | 40 | 96.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 398,01 € |  | |
| 103724RIE | Rp 1/2 | 15 | 51.7 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 161,50 € | | |
| 103725RIE | Rp 3/4 | 20 | 63.5 | 135.0 | Čas dobave: Predvidoma 3 - 5 dni | 182,56 € | | |
| 103723RIE | Rp 3/8 | 10 | 46.0 | 98.0 | Čas dobave: Predvidoma 3 - 5 dni | 147,56 € | | |
| 133390RIE | Rp 2 | 50 | 109.0 | 207.0 | Čas dobave: Predvidoma 3 - 5 dni | 553,51 € | | |
| 103726RIE | Rp 1 | 25 | 69.0 | 143.0 | Čas dobave: Predvidoma 3 - 5 dni | 209,79 € | | |
| 133388RIE | Rp 1 1/4 | 32 | 86.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 320,24 € | |
Opis
Coaxial valve pneumat. actuated, double-acting, NC, nickel-plated brass, Temp. -20°C to 80°C, Control pressure 3-8 bar, Rp 3/8
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Povezava | NAMUR interface, direct: 2 x G 1/8 |
| Navoj | Rp 3/8 |
| Notranji deli | Nickel-plated brass |
| Vzmet | Stainless steel |
| Vgradni položaj | Any |
| Različica | double-acting |
| Tesnilo | NBR |
| Min. vodeni tlak [bar] | 3 |
| Max. vodeni tlak [bar] | 8 |
| DN | 10 |
| H [mm] | 46.0 |
| L [mm] | 98.0 |
