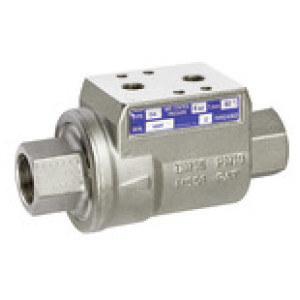

Coaxial valve pneumat. actuated, double-acting NC, NBR, Rp 1 1/4  slika
Coaxial valve pneumat. actuated, double-acting NC, NBR, Rp 1 1/4  slika

* slike so simbolične

Coaxial valve pneumat. actuated, double-acting NC, NBR, Rp 1 1/4

SKU: 133388RIE
EAN: 4047322477857

Coaxial valve pneumat. actuated, double-acting, NC, nickel-plated brass, Temp. -20°C to 80°C, Control pressure 3-8 bar, Rp 1 1/4

2/2-way coaxial valves, specially designed for automated industrial plant engineering.

A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.

These valves have a full bore and - owing to the optimised design - only minimal flow losses.

They are controlled by means of filtered compressed air.

Čas dobave: Predvidoma 3 - 5 dni
320,24 €
ali od 10,89 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,89 € x 36 mesecev
  • 15,64 € x 24 mesecev
  • 29,94 € x 12 mesecev
  • 58,57 € x 6 mesecev
  • 115,85 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi

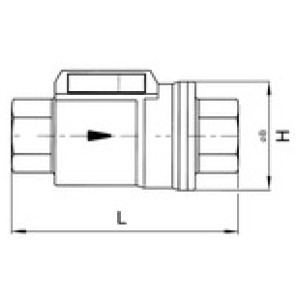

Šifra Navoj DN H [mm] L [mm] Zaloga Cena Nakup Natisni
133389RIE Rp 1 1/2 40 96.0 180.0
Čas dobave: Predvidoma 3 - 5 dni
398,01 € Natisni
103724RIE Rp 1/2 15 51.7 112.0
Čas dobave: Predvidoma 3 - 5 dni
161,50 € Natisni
103725RIE Rp 3/4 20 63.5 135.0
Čas dobave: Predvidoma 3 - 5 dni
182,56 € Natisni
103723RIE Rp 3/8 10 46.0 98.0
Čas dobave: Predvidoma 3 - 5 dni
147,56 € Natisni
133390RIE Rp 2 50 109.0 207.0
Čas dobave: Predvidoma 3 - 5 dni
553,51 € Natisni
103726RIE Rp 1 25 69.0 143.0
Čas dobave: Predvidoma 3 - 5 dni
209,79 € Natisni
133388RIE Rp 1 1/4 32 86.0 165.0
Čas dobave: Predvidoma 3 - 5 dni
320,24 € Natisni

Opis

Coaxial valve pneumat. actuated, double-acting, NC, nickel-plated brass, Temp. -20°C to 80°C, Control pressure 3-8 bar, Rp 1 1/4

2/2-way coaxial valves, specially designed for automated industrial plant engineering.

A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.

These valves have a full bore and - owing to the optimised design - only minimal flow losses.

They are controlled by means of filtered compressed air.

Tehnični podatki in specifikacije

Ohišje Nickel-plated brass
Max. obratovalni tlak [bar] 10
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Povezava NAMUR interface, direct: 2 x G 1/8
Navoj Rp 1 1/4
Notranji deli Nickel-plated brass
Vzmet Stainless steel
Vgradni položaj Any
Različica double-acting
Tesnilo NBR
Min. vodeni tlak [bar] 3
Max. vodeni tlak [bar] 8
DN 32
H [mm] 86.0
L [mm] 165.0
