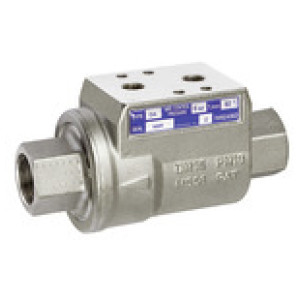

Coaxial valve pneumat. actuated, double-acting NC, FKM, Rp 1 1/2
SKU: 133392RIE
EAN: 4047322477895
Coaxial valve pneumat. actuated, double-acting, NC, nickel-plated brass, Temp. -20°C to 150°C, Control pressure 3-8 bar, Rp 1 1/2
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
Obrestno financiranje
- 11,34 € x 48 mesecev
- 14,49 € x 36 mesecev
- 20,82 € x 24 mesecev
- 39,86 € x 12 mesecev
- 77,98 € x 6 mesecev
- 154,22 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

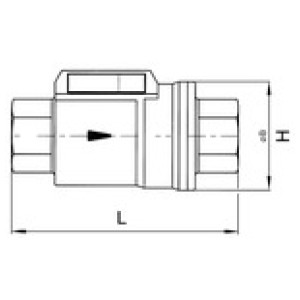

| Šifra | Navoj | DN | H [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 103730RIE | Rp 1 | 25 | 69.0 | 143.0 | Čas dobave: Predvidoma 3 - 5 dni | 236,29 € |  | |
| 133392RIE | Rp 1 1/2 | 40 | 96.0 | 180.0 | Čas dobave: Predvidoma 3 - 5 dni | 425,67 € | | |
| 133391RIE | Rp 1 1/4 | 32 | 86.0 | 165.0 | Čas dobave: Predvidoma 3 - 5 dni | 340,03 € | | |
| 133393RIE | Rp 2 | 50 | 109.0 | 207.0 | Čas dobave: Predvidoma 3 - 5 dni | 586,45 € | | |
| 103728RIE | Rp 1/2 | 15 | 51.7 | 112.0 | Čas dobave: Predvidoma 3 - 5 dni | 181,12 € | | |
| 103729RIE | Rp 3/4 | 20 | 63.5 | 135.0 | Čas dobave: Predvidoma 3 - 5 dni | 205,80 € | | |
| 103727RIE | Rp 3/8 | 10 | 46.0 | 98.0 | Čas dobave: Predvidoma 3 - 5 dni | 165,33 € | |
Opis
Coaxial valve pneumat. actuated, double-acting, NC, nickel-plated brass, Temp. -20°C to 150°C, Control pressure 3-8 bar, Rp 1 1/2
2/2-way coaxial valves, specially designed for automated industrial plant engineering.
A low-price, compact, space-saving and reliable alternative to ball valves with a pneumatic rotary actuator.
These valves have a full bore and - owing to the optimised design - only minimal flow losses.
They are controlled by means of filtered compressed air.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Povezava | NAMUR interface, direct: 2 x G 1/8 |
| Navoj | Rp 1 1/2 |
| Notranji deli | Nickel-plated brass |
| Vzmet | Stainless steel |
| Vgradni položaj | Any |
| Različica | double-acting |
| Tesnilo | FKM |
| Min. vodeni tlak [bar] | 3 |
| Max. vodeni tlak [bar] | 8 |
| DN | 40 |
| H [mm] | 96.0 |
| L [mm] | 180.0 |
