Cilinder kratkega hodadelujoč v dveh smerehbatØ 25hod 25G 1/8
SKU: 105914RIE
EAN: 2120250025CN

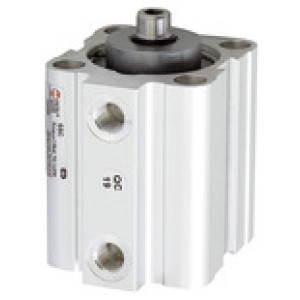

Short stroke cylinder, double-acting, Magnet, Piston Ø 25, Stroke 25, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 16,11 € x 6 mesecev
- 31,86 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Bat | Batnica IT | Glava | Ovoj | Povezava | Min. nastavljeni tlak [bar] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
105916RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 25 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 89,04 € | | |
105902RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 77,91 € | | |
105938RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 63 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 138,41 € | | |
105937RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 63 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 136,96 € | | |
105939RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 63 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 142,20 € | | |
105946RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 222,36 € | | |
105932RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 50 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 115,52 € | | |
105897RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 76,18 € | | |
105919RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 32 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 93,31 € | | |
105951RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 252,33 € | | |
105909RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 20 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 83,63 € | | |
105910RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 20 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 84,13 € | | |
105896RIE | Synthetic (acetal) resin | M3 | Painted brass | Aluminum alloy, anodised | M5 | 0.6 | 12 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 75,70 € | | |
105907RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 20 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 81,89 € | | |
105947RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 224,42 € | | |
105911RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 20 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 84,90 € | | |
105928RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 40 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 102,52 € | | |
105922RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 32 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 97,12 € | | |
105921RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 32 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 95,84 € | | |
105903RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 79,02 € | | |
105934RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 50 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 118,55 € | | |
105933RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 50 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 116,62 € | | |
105906RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 20 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 81,58 € | | |
105915RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 25 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 88,08 € | | |
105924RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 40 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 97,28 € | | |
105948RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 228,21 € | | |
105905RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 79,97 € | | |
105944RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 214,26 € | | |
105926RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 40 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 100,31 € | | |
105914RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 25 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 87,61 € | | |
105904RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 79,68 € | | |
105931RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 50 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 112,84 € | | |
105950RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 242,34 € | | |
105912RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 25 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 85,38 € | | |
105941RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 63 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 146,01 € | | |
105925RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 40 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 98,08 € | | |
105940RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 63 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 143,47 € | | |
105929RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 40 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 103,93 € | | |
105899RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 77,14 € | | |
105918RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 32 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 92,67 € | | |
105930RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 50 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 111,41 € | | |
105935RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 50 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 120,29 € | | |
105936RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 50 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 125,22 € | | |
105908RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 20 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 83,00 € | | |
105949RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 232,32 € | | |
105920RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 32 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 95,38 € | | |
105900RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 77,78 € | | |
105901RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 16 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 77,78 € | | |
105923RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 32 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 98,38 € | | |
105917RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 89,80 € | | |
105942RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 63 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 148,69 € | | |
105943RIE | Synthetic (acetal) resin | M8 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 63 | 70 | Čas dobave: Predvidoma 3 - 5 dni | 155,37 € | | |
105945RIE | Aluminium/PTFE | M10 | Aluminium | C45 steel, hard chrome-plated | G 1/4 | 0.4 | 80 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 216,33 € | | |
105927RIE | Synthetic (acetal) resin | M6 | Aluminium | C45 steel, hard chrome-plated | G 1/8 | 0.4 | 40 | 30 | Čas dobave: Predvidoma 3 - 5 dni | 100,94 € | | |
105898RIE | Synthetic (acetal) resin | M3 | Painted brass | C45 steel, hard chrome-plated | M5 | 0.6 | 12 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 76,98 € | | |
105913RIE | Synthetic (acetal) resin | M5 | Painted brass | C45 steel, hard chrome-plated | G 1/8 | 0.6 | 25 | 10 | Čas dobave: Predvidoma 3 - 5 dni | 85,72 € | |
Opis
Short stroke cylinder, double-acting, Magnet, Piston Ø 25, Stroke 25, G 1/8, Working pressure max. 10 bar, Temp. -10 °C to 80 °C
Suitable for installation in limited spaces.
Supplied with magnet.
Suitable for filtered compressed air, lubricated (ensure continuity) or unlubricated.
Tehnični podatki in specifikacije
Min. nastavljeni tlak [bar] | 0.6 |
Magnet | with magnet |
Ffunkcija | double-acting |
Cushioning | non-cushioned |
Gewinde Kolbenstange | female piston rod |
Max. delovni tlak [bar] | 10 |
Min. temperaturno območje [°C] | -10 |
Max. temperaturno območje [°C] | 80 |
Ovoj | C45 steel, hard chrome-plated |
Tesnilo batnice | NBR (additional charge for PU and FKM) |
Bat Ø [mm] | 25 |
Stroke [mm] | 25 |
Povezava | G 1/8 |
Batnica | C45 steel, hard chrome-plated |
Batnica IT | M5 |
Bat | Synthetic (acetal) resin |
Glava | Painted brass |
