* slike so simbolične

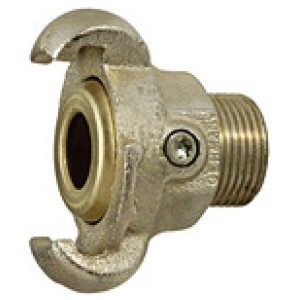

Čeljustni spoj z zunanjim navojem, G 1/2, z tesnilom , Medenina
SKU: 107855RIE
EAN: 4047322258920
Jaw coupling with ET, G 1/2, with brass seal, Malleable cast iron, galvanised / yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Čas dobave: Predvidoma 3 - 5 dni
18,03 €
| Šifra | Navoj | DN | a/f [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107857RIE | G 1 | 17 | 40 | 49.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,08 € |  | |
| 107856RIE | G 3/4 | 17 | 32 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | 18,70 € | | |
| 107855RIE | G 1/2 | 11 | 27 | 54.9 | Čas dobave: Predvidoma 3 - 5 dni | 18,03 € | |
Opis
Jaw coupling with ET, G 1/2, with brass seal, Malleable cast iron, galvanised / yellow passivated, Operating pressure max. 10 bar
"Universal standard coupling for compressed air lines on construction sites or in industry
Tehnični podatki in specifikacije
| DN | 11 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Navoj | G 1/2 |
| a/f [mm] | 27 |
| Tesnilo | NBR |
| Material | Malleable iron, zinc plated and yellow chromated |
| Razdalja med objemkami [mm] | 42 |
| L [mm] | 54.9 |
| H [mm] | 63.0 |
