* slike so simbolične

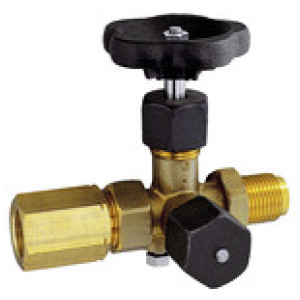

Blokirni ventil za manometer, ročno posredovanje, medenina, G 1/2
SKU: 102667RIE
EAN: 9090975
Blocking valve pressure gauge, Taps - tension sleeve, DIN 16271, A shape, made of brass, G 1/2, PN 250 bar, AF 27, max. 120 °C
Used as shut-off or reducing elements for pressure gauges when measuring liquids, gases or steam.
Čas dobave: Predvidoma 3 - 5 dni
44,64 €
| Šifra | Min. delovna temperatura [°C] | Konektor z notranjim/zunanjim navojem | Matica | Ohišje | Max. delovna temperatura [°C] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 102669RIE | -20 | Stainless steel | Stainless steel | Stainless steel 1.4571 | 200 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 129,16 € |  | |
| 102668RIE | -10 | Steel | Steel | Black-finished steel | 120 | 400 | Čas dobave: Predvidoma 3 - 5 dni | 45,35 € | | |
| 102667RIE | -10 | Steel | Steel | Brass | 120 | 250 | Čas dobave: Predvidoma 3 - 5 dni | 44,64 € | |
Opis
Blocking valve pressure gauge, Taps - tension sleeve, DIN 16271, A shape, made of brass, G 1/2, PN 250 bar, AF 27, max. 120 °C
Used as shut-off or reducing elements for pressure gauges when measuring liquids, gases or steam.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 120 |
| PN [bar] | 250 |
| a/f [mm] | 27 |
| Tesnilo | PTFE |
| Kolo | Plastic |
| Ohišje | Brass |
| Steblo ventila | Stainless steel |
| Stožec ventila | Stainless steel |
| Matica | Steel |
| Konektor z notranjim/zunanjim navojem | Steel |
| Različica | male / female/female, with test socket M20x1.5 |
